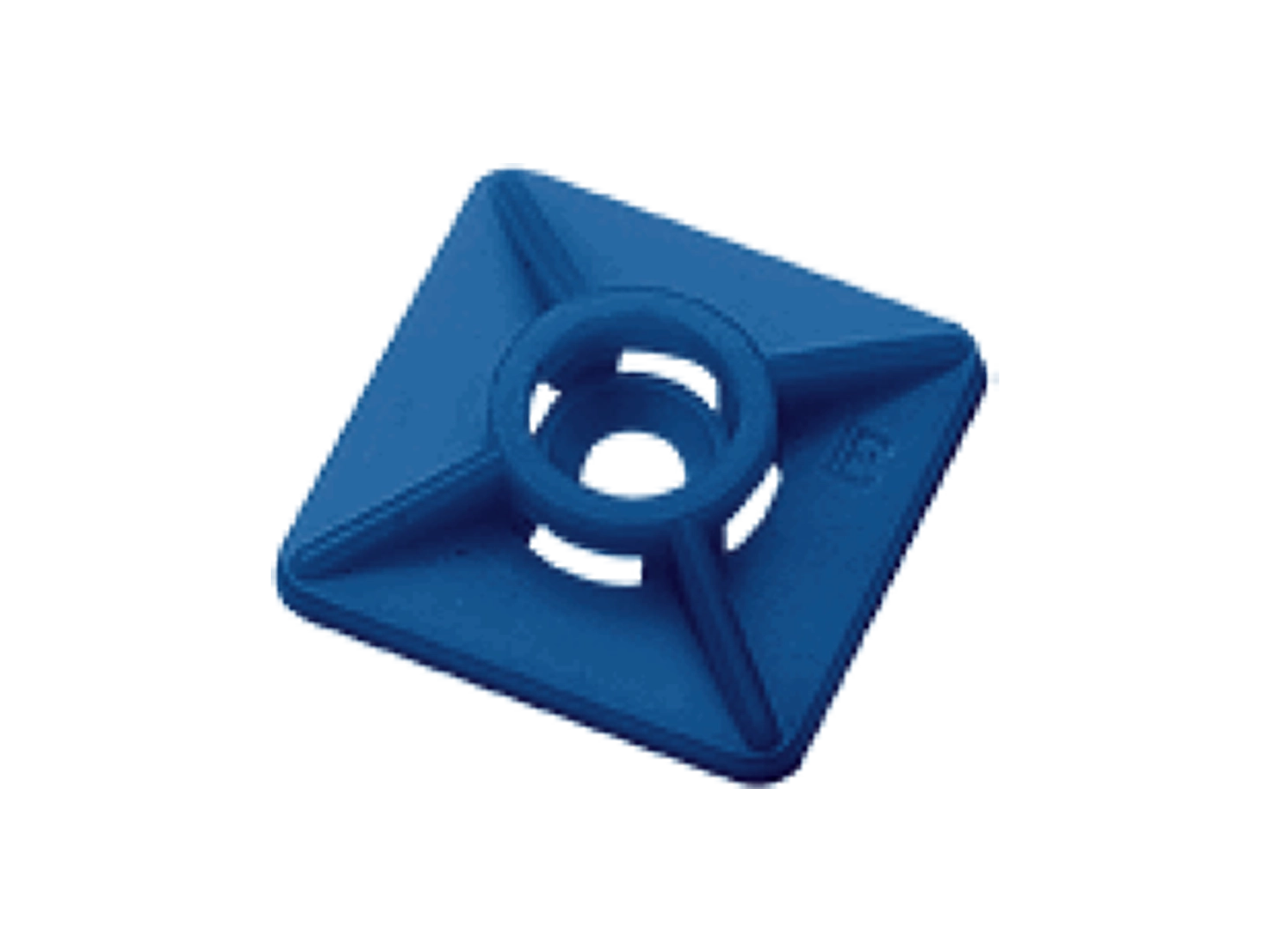

Elematic® - 4-way adhesive backed mounts detectable, for cable ties

BN 22333
Brand
Elematic®
Material
Polyamide
Material execution
PA 6.6
Color
blue

Description

Product features

  • UV stability: poor
  • Polyamide 6.6 added with iron oxide
  • Operating temperature range: -40 °C ... +85 °C
  • Installation temperature: -5 °C ... +60 °C
  • Adhesive based on rubber
  • Material flammability rating: UL94 class HB
  • Halogen-free

Additional information

Test standard: CEI EN 62275

Assembly

For a correct application of the adhesive bases, the surfaces must be thoroughly cleaned and degreased with solvent (alcohol or other cleaning product).
