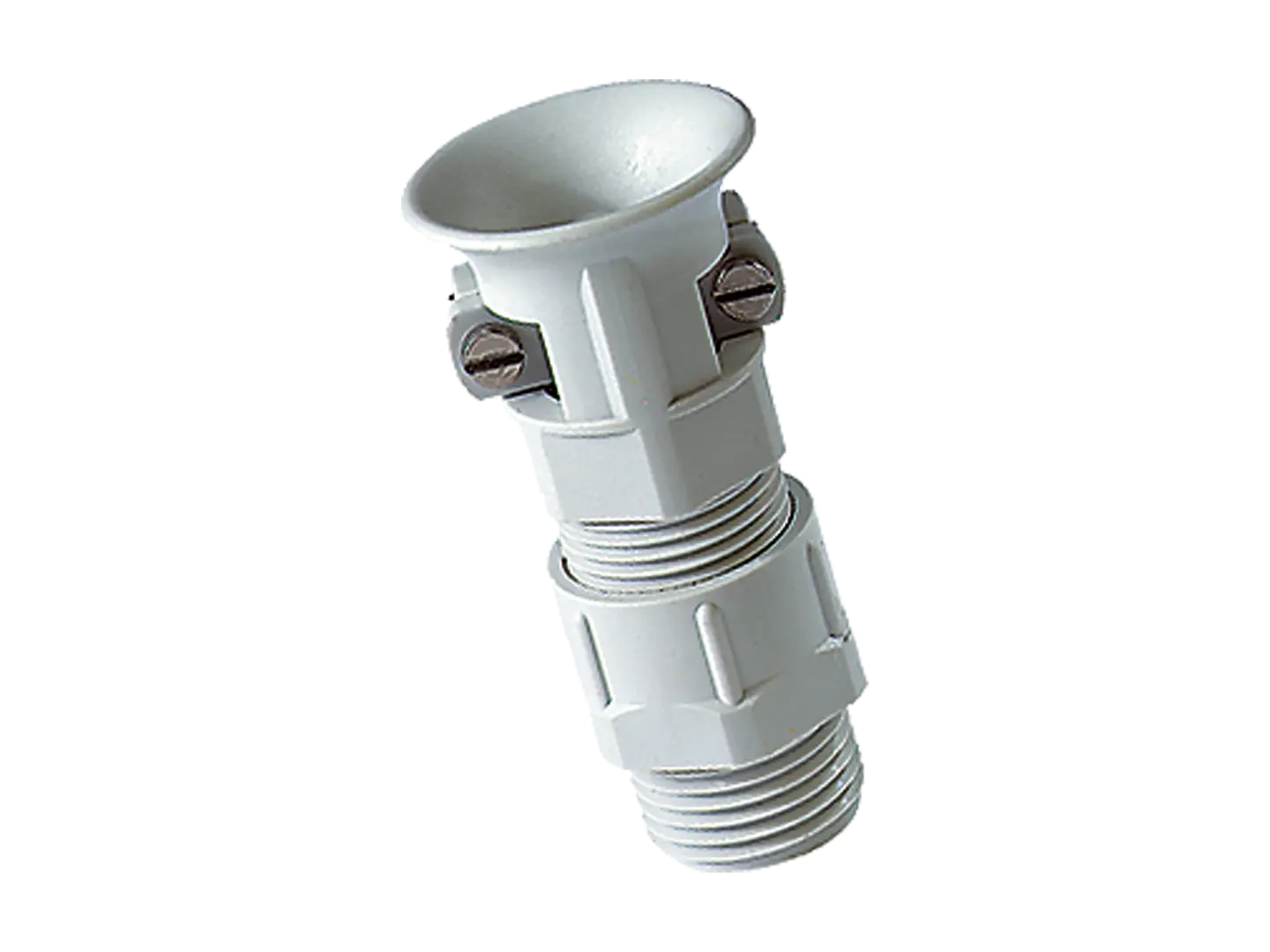

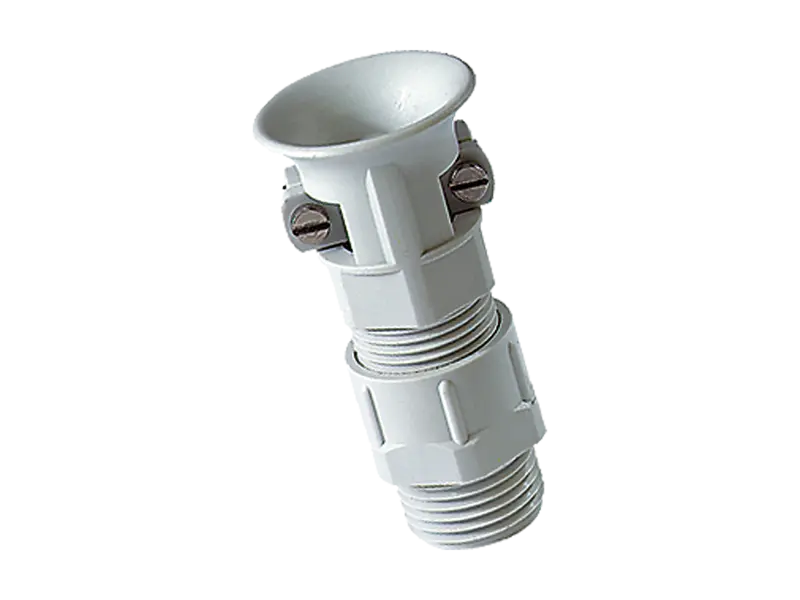

JACOB® FAVORIT - Cable glands with metric thread and strain relief clamp with bending protection

BN 22085

JACOB® FAVORIT - Cable glands with metric thread and strain relief clamp with bending protection

BN 22085

Brand: JACOB®
Brandtype: FAVORIT
Material: Polyamide
Material type: PA 6
Color: light gray RAL 7035

Description

Product features

Pressure screw: polyamide PA 6 GF30
Strain relief clamp: polyamide PA 6 GF30
Bolt/Nut: stainless steel
Washer: polyethylene PE-HD
Sealing ring: SBR/NBR
Gland body: polyamide PA 6 GF30
Connecting thread: metric, as per EN 60423
Increased anchorage and bending protection
Temperature range: -30 °C ... +80 °C
Protection grade: IP55

Variants

CAD
