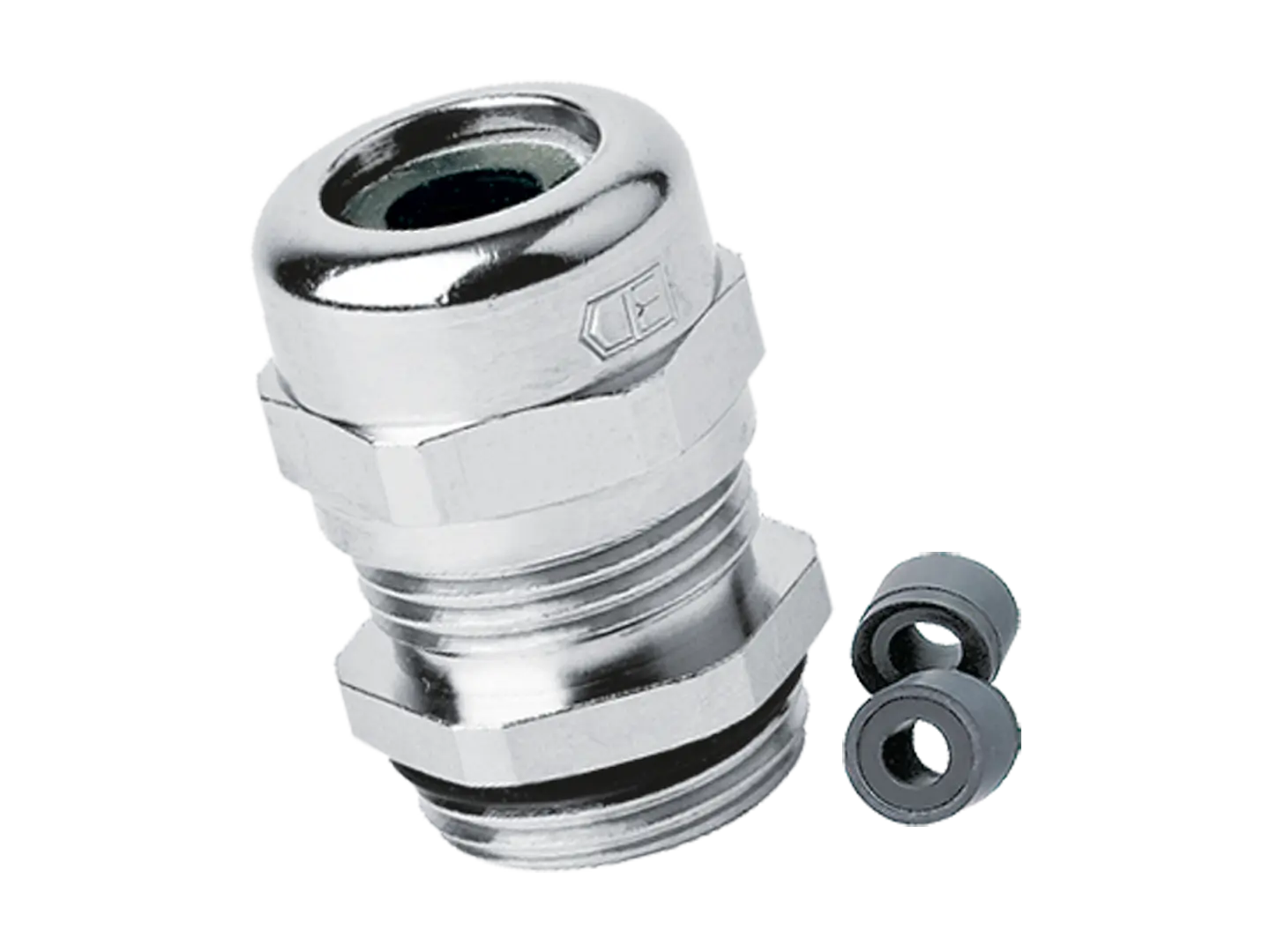

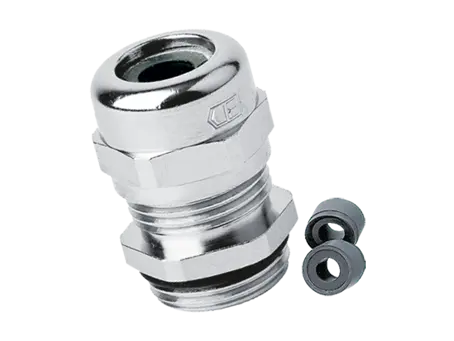

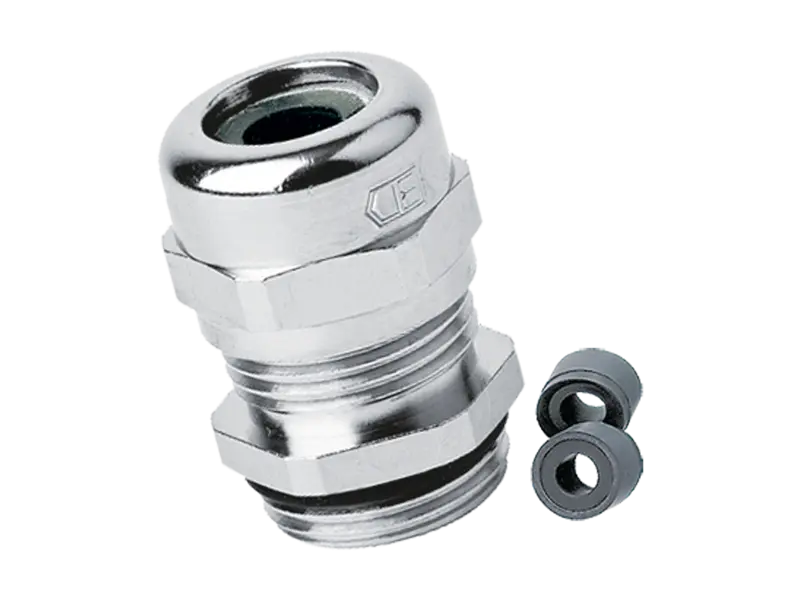

Product features

• Dome nut: brass CuZn39Pb3, nickel-plated
• Lamellar insert: polyamide PA 6 V-2
• Sealing ring/outer part: polychloroprene-Nitrile rubber CR/NBR
• Sealing ring/inner part: TPE/TPS
• Gland body: brass CuZn39Pb3, nickel-plated
• O-ring: Nitrile rubber NBR
• Connecting thread: metric, as per EN 60423
• Reducing sealing ring for small cable-diameter, integrated anchorage, wide sealing and clamping range, protection against twisting, easy-to-install
• Temperature range: -20 °C ... +100 °C (dynamic)
• Temperature range: -40 °C ... +100 °C (static, short term)
• Protection grade: IP68 - 5 bar, IP69K (tested for M12-M25, M50 and M63)

Additional information

Test standard: EN 62444 / UL 514B
VDE licence: 40020901
UL/CSA-File: E140310
Test standard: UL 514B
UL/CSA-File: E140310
