Description
Product features
- Dome nut: brass CuZn39Pb3, nickel-plated
- Lamellar insert: polyamide PA 6 V-2
- Sealing ring: polychloroprene-Nitrile rubber CR/NBR
- Contact spring: stainless steel
- Gland body: brass CuZn39Pb3, nickel-plated
- O-ring: Nitrile rubber NBR
- Connecting thread: metric, as per EN 60423

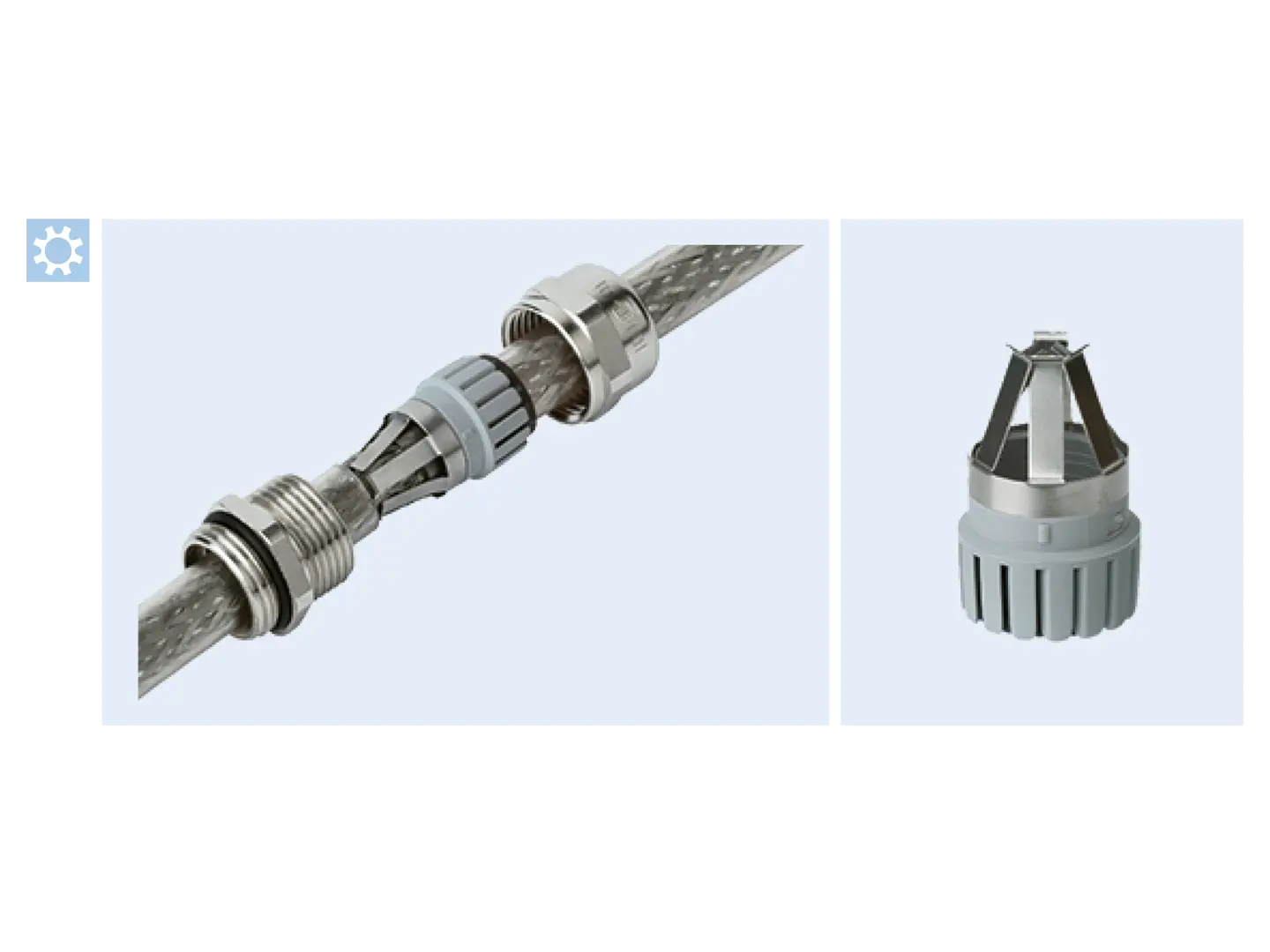

- For cables with shielding, quick and easy EMC connection of the cable shield via the contacting spring with the gland body and the housing potential, integrated anchorage, wide sealing and clamping range
- Temperature range: -20 °C ... +100 °C (dynamic)
- Temperature range: -40 °C ... +100 °C (static, short term)
- Protection grade: IP68
