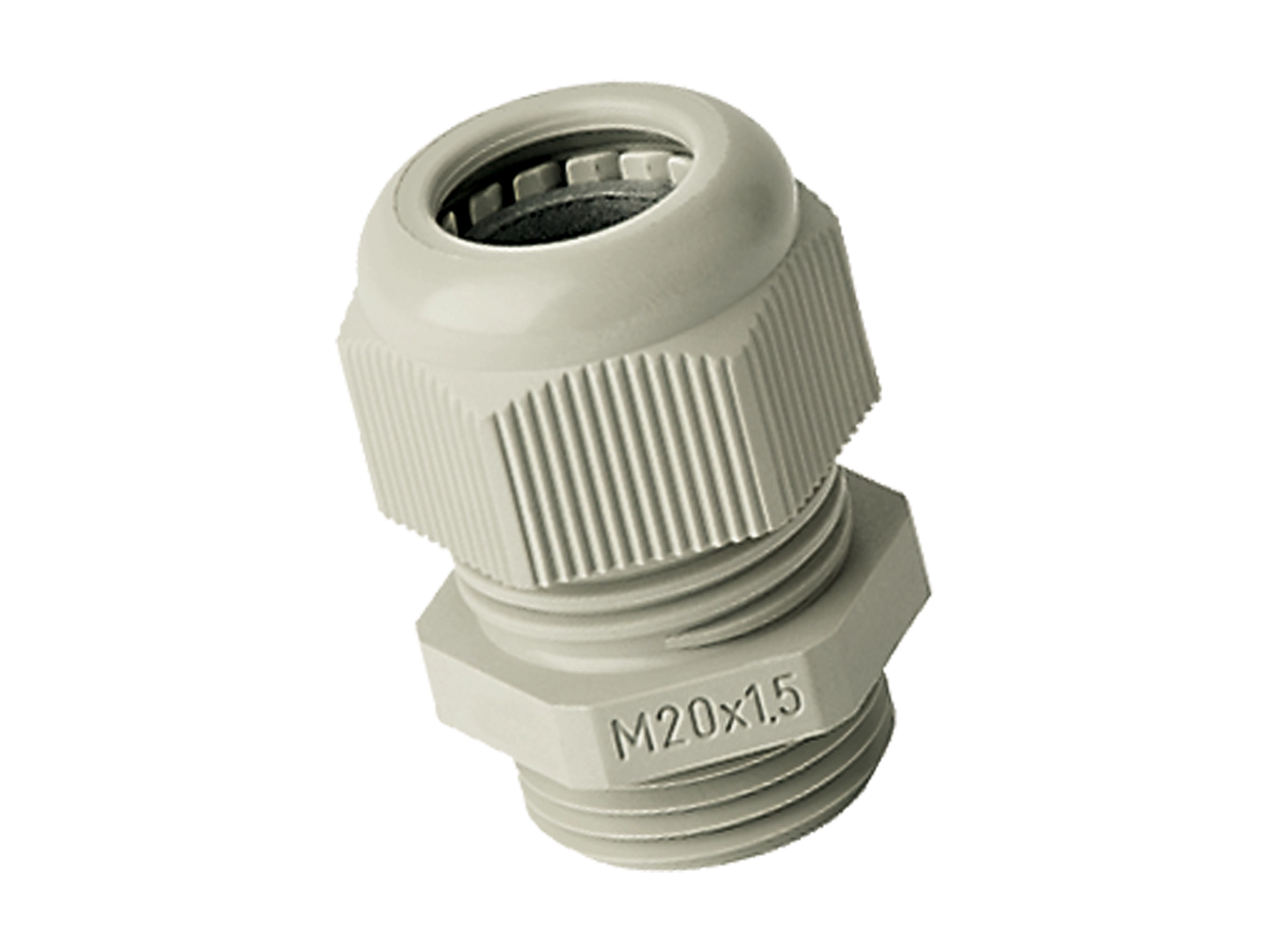

Product features

• Dome nut: polyamide PA 6 V-0

• Sealing ring: polychloroprene-Nitrile rubber CR/NBR

• Gland body: polyamide PA 6 V-0

• Connecting thread: metric, as per EN 60423

• For superior claims on firing protection

• Polyamide material fulfills UL94V-0

• Integrated anchorage

• Wide sealing and clamping range

• Easy-to-install

• Temperature range: -20 °C ... +100 °C (dynamic)

• Temperature range: -40 °C ... +100 °C (static, short term)

• Protection grade: IP68

Additional information

Test standard: UL 514B UL/CSA-File: E140310 DNV-GL Zertifikat: TAE000037X All listed parts - are in accordance with EN 45545-2, clause 4.5 "Non-listed products" with - exposed areas ≤ 0,20 m², location interior, R22 - exposed areas ≤ 0,20 m², location exterior, R23 - have according to EN 45545-2, clause 4.3.2, Rule 1 total, combustible / flammable mass of the products < 100 g for grouped products, location interior < 400 g for grouped products, location exterior
