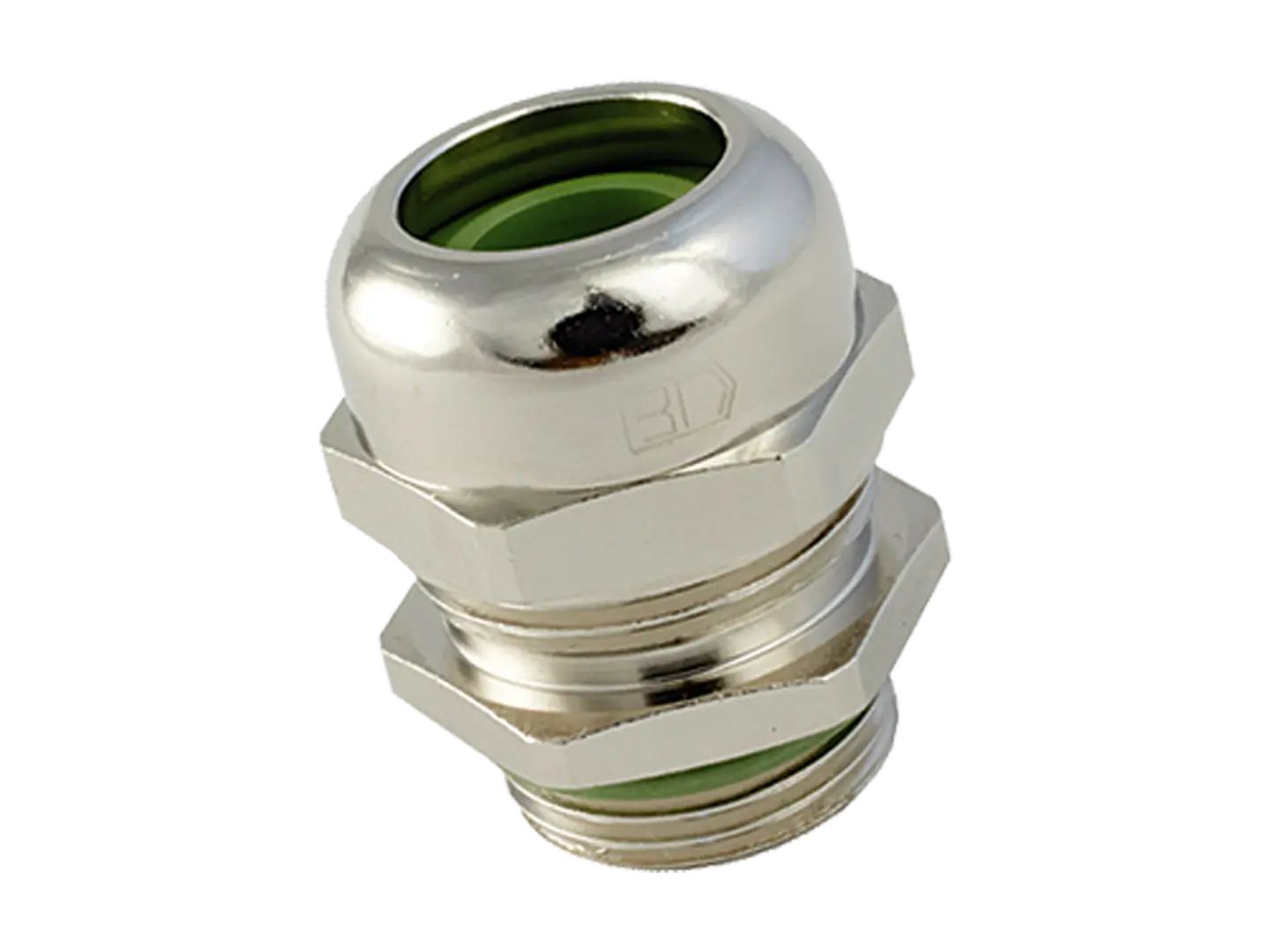

Product features

• Dome nut: stainless steel 1.4404 / AISI 316L
• Sealing insert: fluorine rubber FKM
• Gland body: stainless steel 1.4404 / AISI 316L
• O-Ring: fluorine rubber FKM
• Connecting thread: metric, as per EN 60423
• Especially suitable for high temperature applications
• Sealing insert and O-ring have a very good resistance to many chemicals
• Large-area sealing protects the cable
• Integrated anchorage with high retention
• Wide sealing and clamping range
• The inner sealing ring can be removed easily for larger cables
• Twisting is prevented by conical sealing insert, independent of the position
• High UV, ozone and weather resistance
• Temperature range: -40 °C ... +200 °C (dynamic)
• Protection grade: IP66 / IP67 / IP69

Additional information

Test standard: EN 62444 EMC-version available on request
