Description
Product features

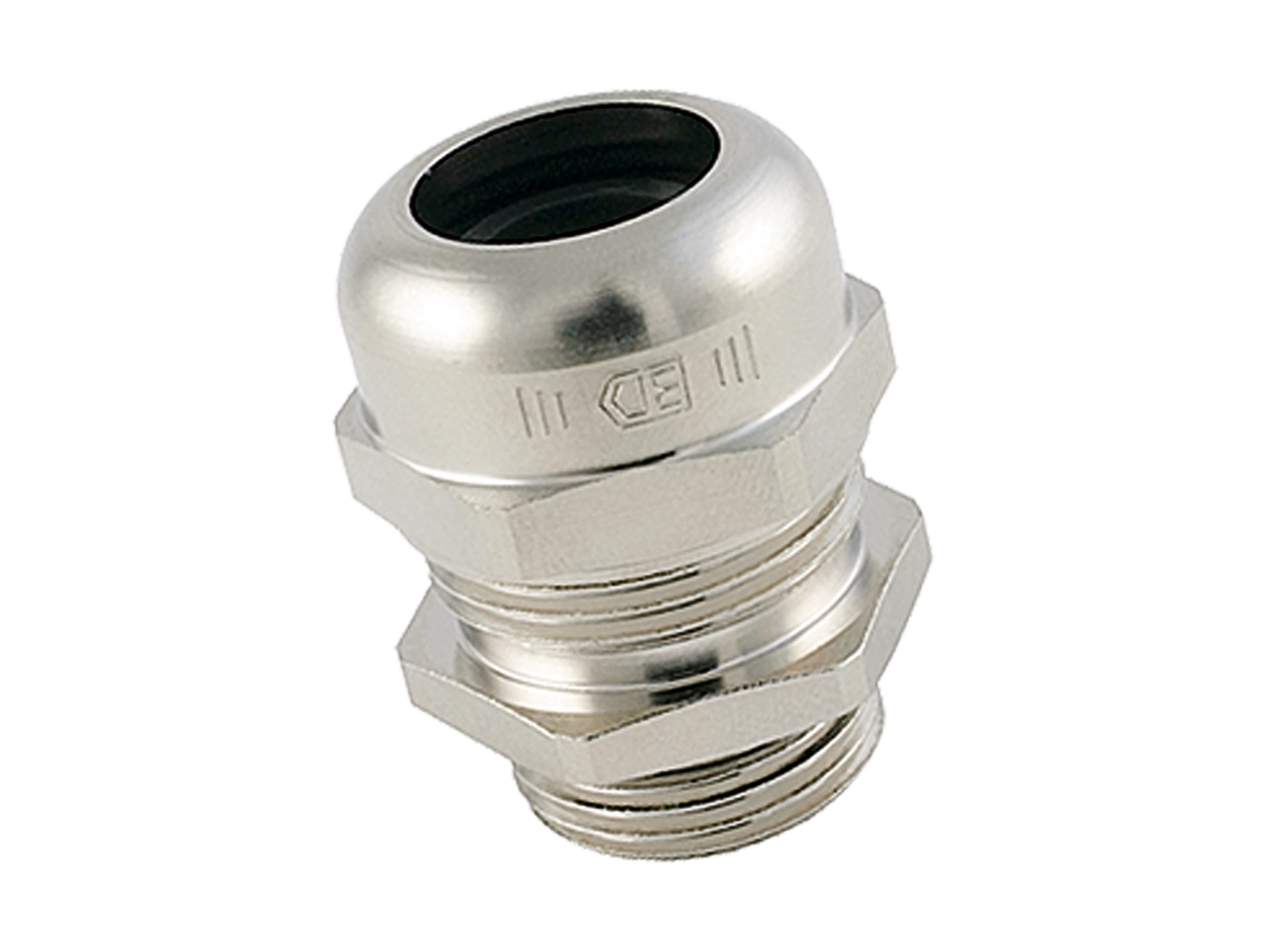

- Dome nut: brass CuZn39Pb3, nickel-plated
- Sealing insert: TPE/TPS
- Gland body: Brass CuZn39Pb3, nickel-plated
- O-ring: Nitrile rubber NBR
- Connecting thread: metric, as per EN 60423
- Large-area sealing protects the cable
- Integrated anchorage with high retention
- Wide sealing and clamping range
- The inner sealing ring can be removed easly for larger cables
- Material of the sealing insert fulfills UL 94 HB
- High UV, ozone and weather resistance
- Temperature range: -40 °C ... +100 °C (dynamic)
- Protection grade: IP66 / IP68 - 15 bar (30 min.) / IP69
