Product features

• Dome nut: brass CuZn39Pb3, nickel-plated
• Sealing insert: TPE/TPS
• Gland body: brass CuZn39Pb3, nickel plated
• O-Ring: Nitrile rubber NBR
• Contact spring: stainless steel 1.4310
• Connecting thread: metric, as per EN 60423
• For cables with shielding

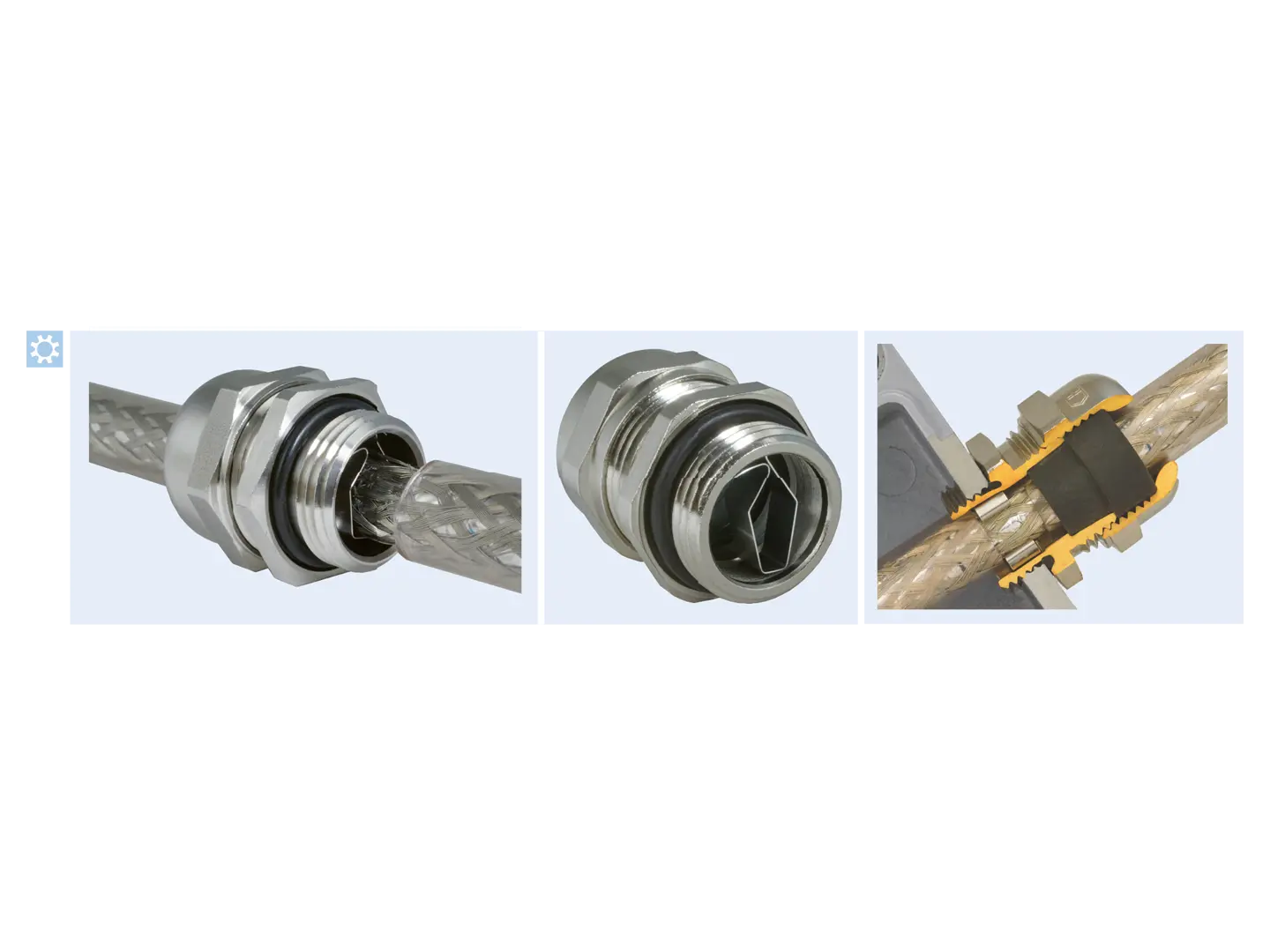

• Quick and easy EMC connection of the
• cable shield via the contacting spring
• with the gland body and the housing
• potential
• Large-area sealing protects the cable
• Integrated anchorage with high retention
• Wide sealing and clamping range
• The inner sealing ring can be removed easily for larger cables
• Material of the sealing insert fulfills UL94 HB
• High UV, ozone and weather resistance
• Temperature range: -40 °C ... +100 °C (dynamic)
• Protection grade: IP66 / IP68 - 15 bar (30 min.) / IP69

Additional information

Test standard: EN 62444. VDE licence: 40050445. DNV-GL certificate: TAE00003VR.
