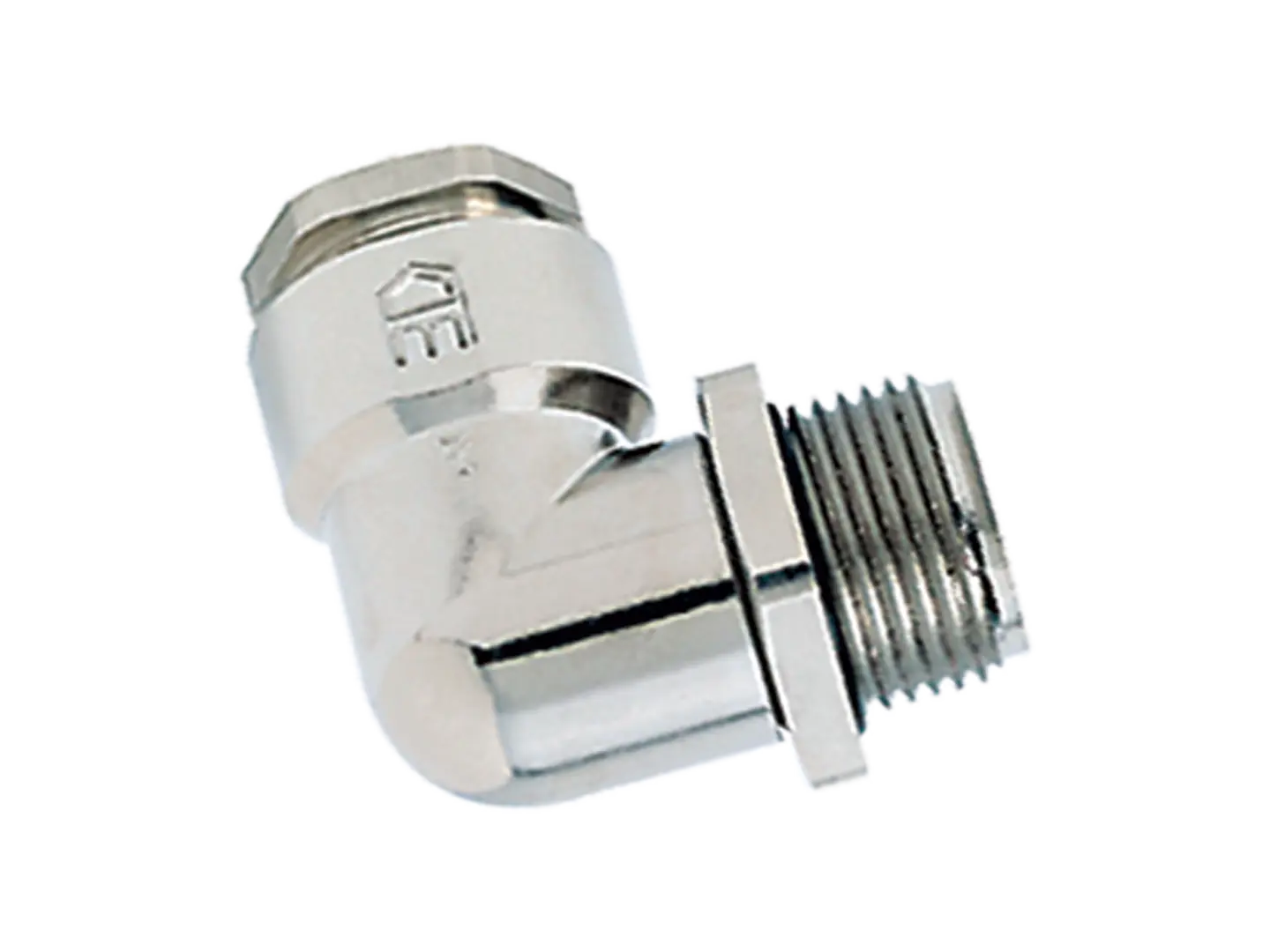

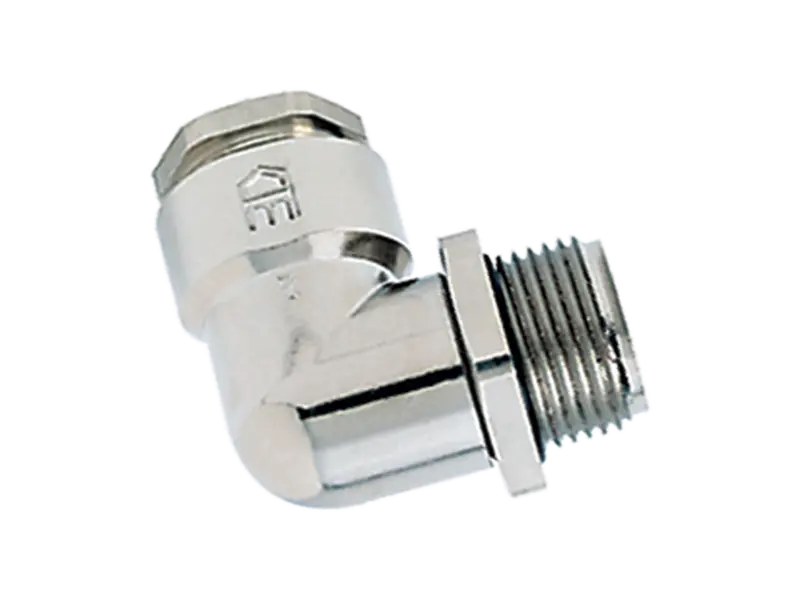

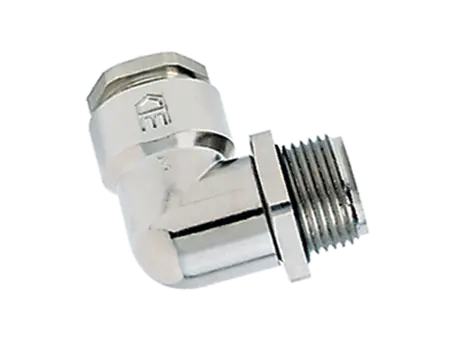

Description
Product features
- Pressure screw: brass CuZn39Pb3, nickel-plated
- Washer: steel, zinc-plated
- Sealing ring: SBR/NBR, multiple perforation
- Elbow: zinc die-casting, nickel-plated
- Locknut: brass CuZn39Pb3, nickel-plated
- O-ring: Nitrile rubber NBR
- Connecting thread: metric, as per EN 60423
- For application in installation areas with small amounts of space due to construction dimensions, locknut allows adjustment in any position
- Temperature range: -20 °C ... +100 °C
- Protection grade: IP55
Assembly
The maximum clamping range is dependent on type of cable and assembling.
