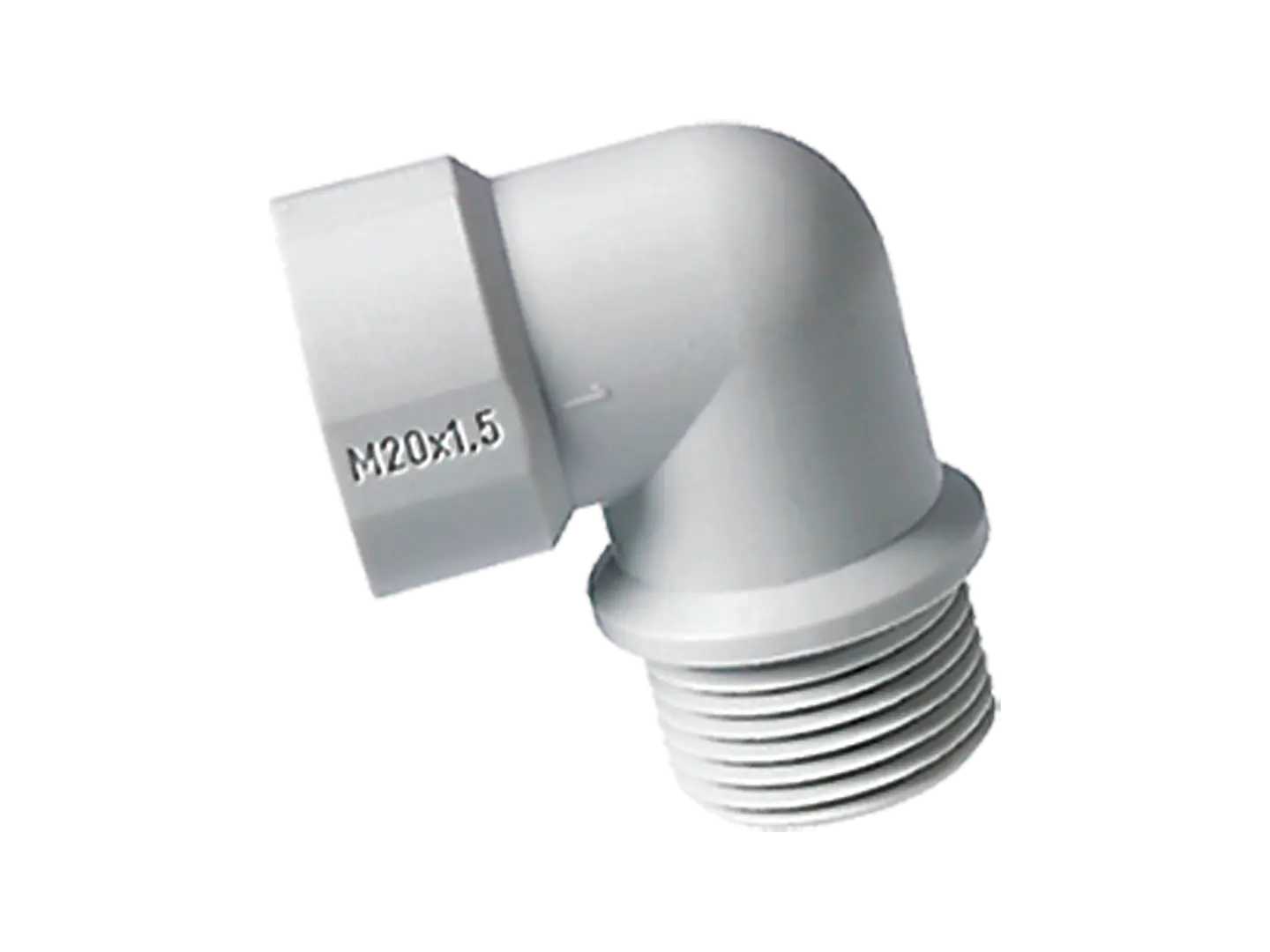

  1. Product image of JACOB® - Elbows 90°
  2. Technical drawing with dimensions of JACOB® - Elbows 90°
Overlay

1

/2

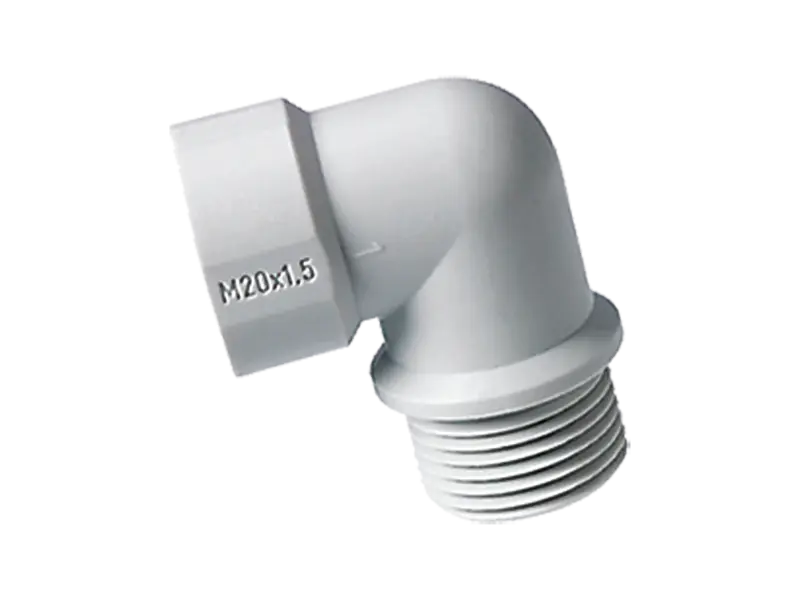

Product image of JACOB® - Elbows 90°
  • Product image of JACOB® - Elbows 90°
  • Technical drawing with dimensions of JACOB® - Elbows 90°

JACOB® - Elbows 90°

BN 22089
Brand
JACOB®
Material
Polyamide
Material type
PA 6
Color
light gray RAL 7035

Description

Product features

  • Elbow: polyamide PA 6 GF25
  • For application in installation areas with small amounts of space due to construction dimensions
  • Temperature range: -20 °C ... +100 °C
  • Protection grade: dependent on the combination with other components
