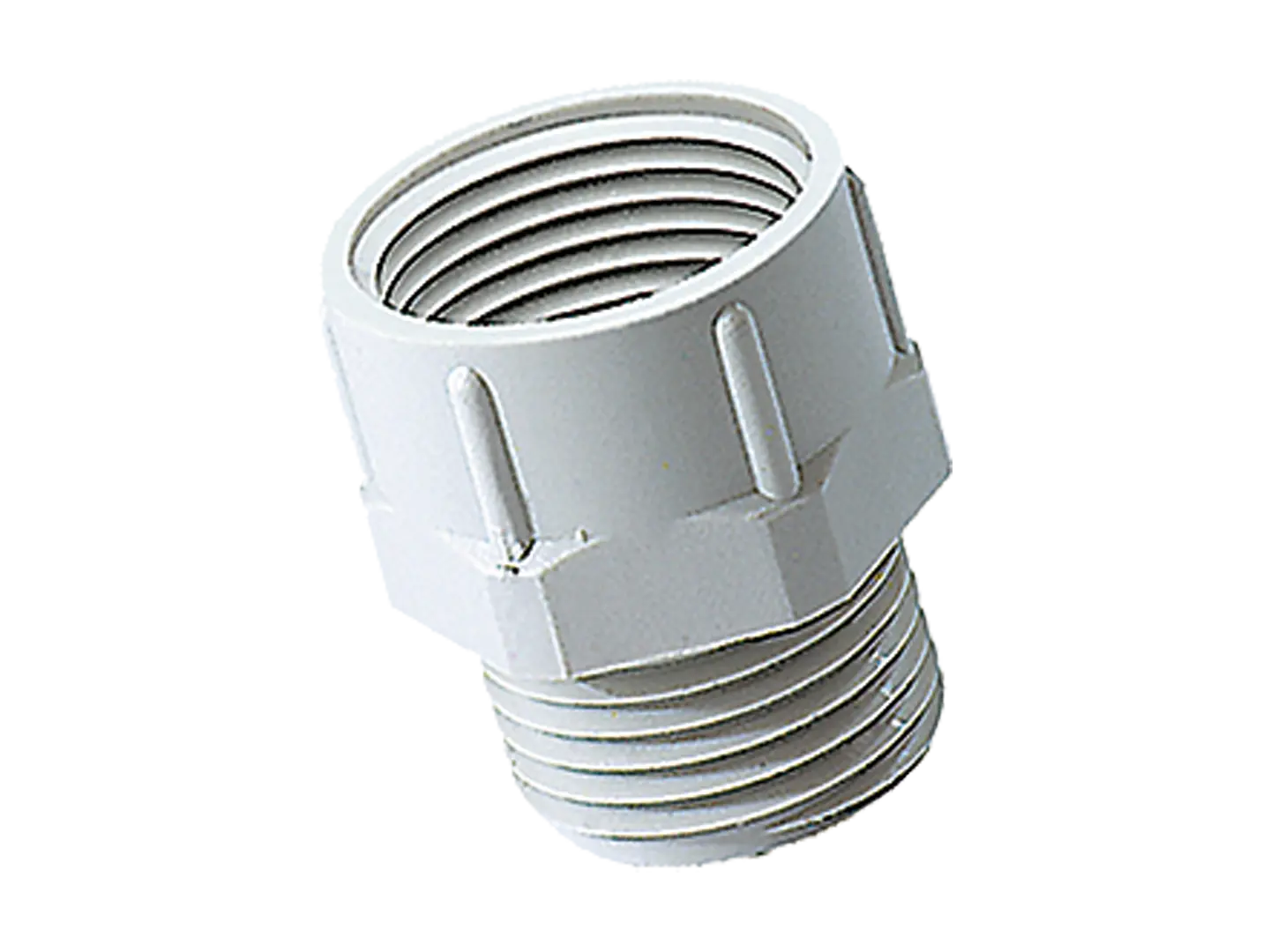

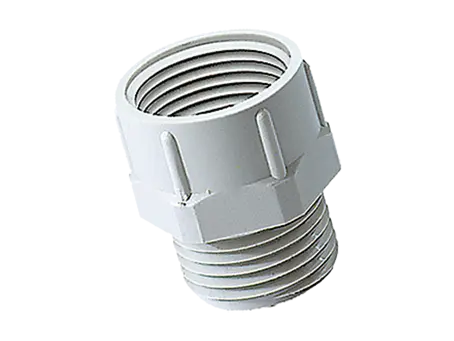

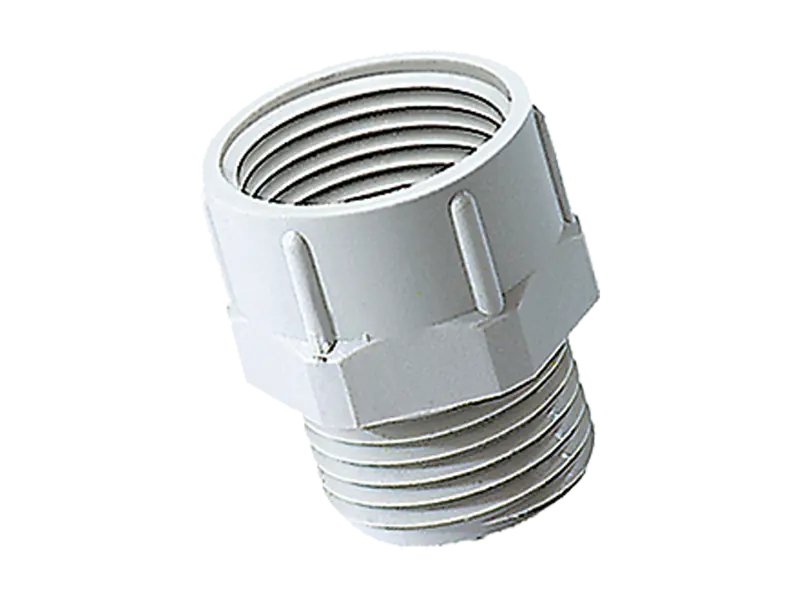

Product image of JACOB® - Adapters hexagonal for metric thread on Pg thread
  1. Product image of JACOB® - Adapters hexagonal for metric thread on Pg thread
  2. Technical drawing with dimensions of JACOB® - Adapters hexagonal for metric thread on Pg thread
Overlay

1

/2
Product image of JACOB® - Adapters hexagonal for metric thread on Pg thread
  • Product image of JACOB® - Adapters hexagonal for metric thread on Pg thread
  • Technical drawing with dimensions of JACOB® - Adapters hexagonal for metric thread on Pg thread

JACOB® - Adapters hexagonal for metric thread on Pg thread

BN 22108
Brand
JACOB®
Material
Polyamide
Material type
PA 6
Color
light gray RAL 7035

Description

Product features

  • Adapter: polyamide PA 6 GF30
  • External thread: metric, as per EN 60423
  • Internal thread: Pg, as per DIN 40430
  • Adapter from metric to Pg-threaded holes
  • Temperature range: -30 °C ... +100 °C
  • Protection grade: dependent on the combination with other components
