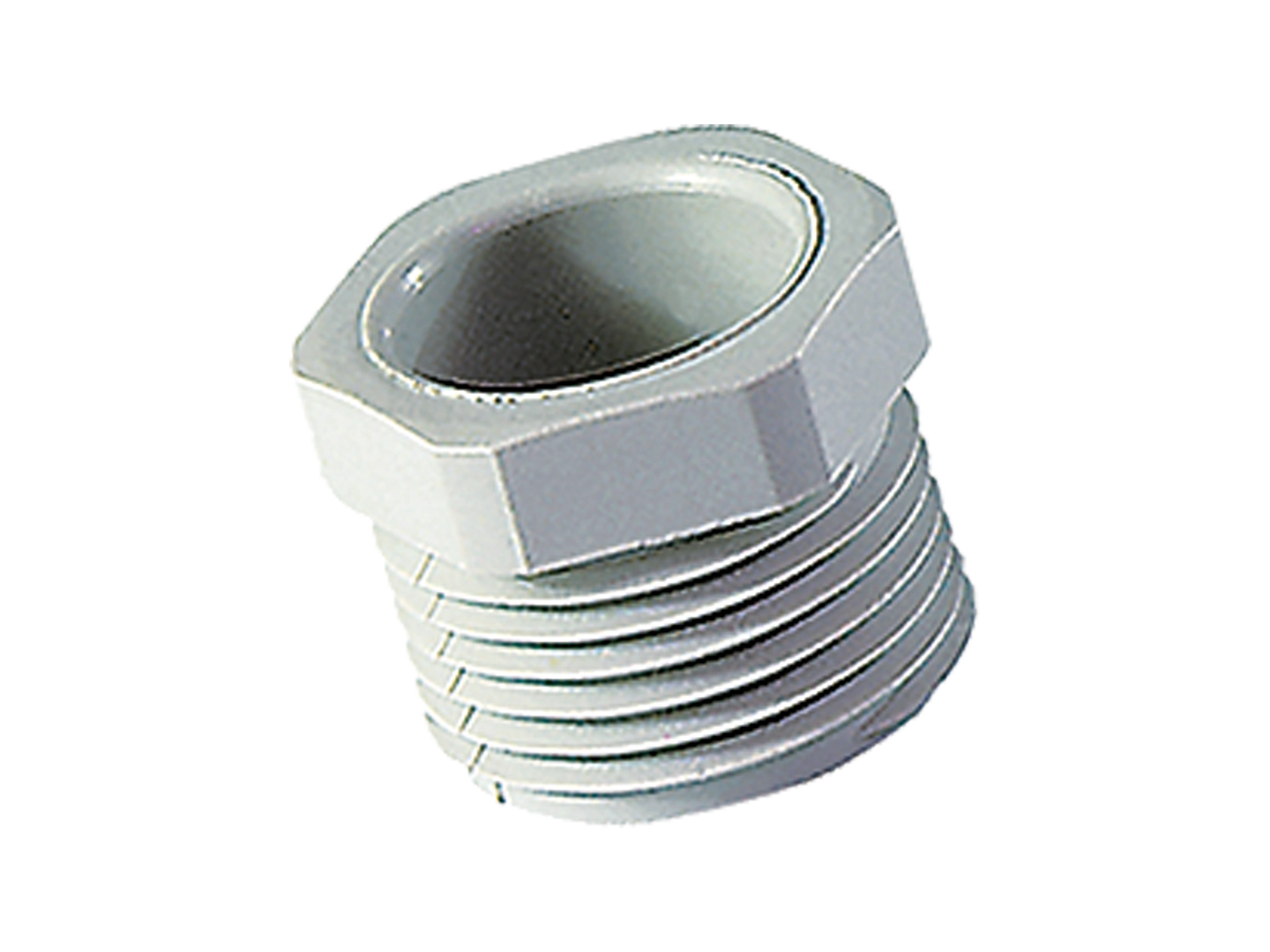

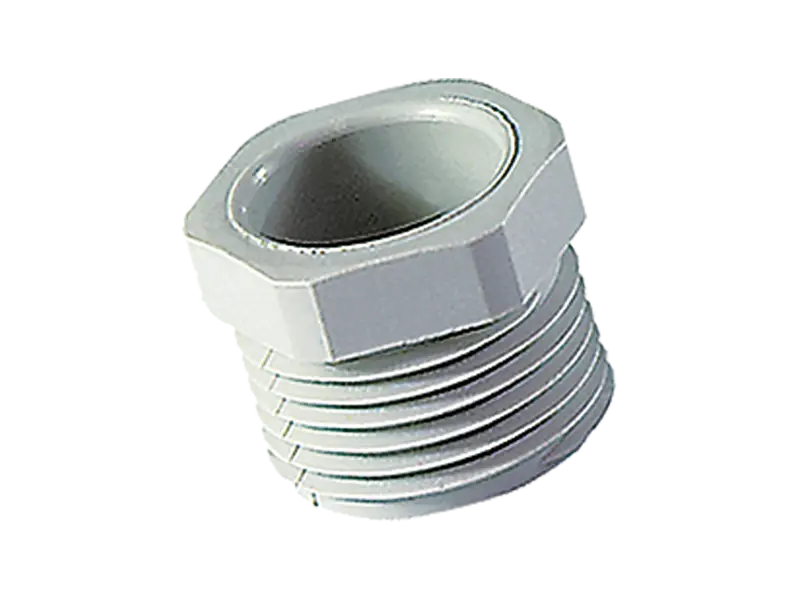

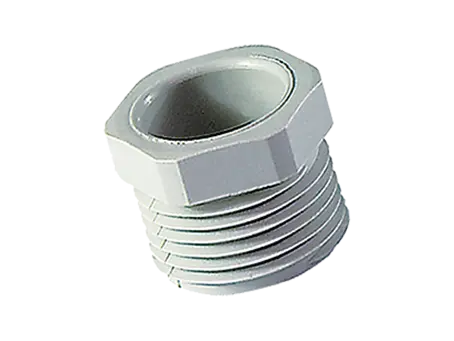

Product image of JACOB® - Pressure screws with metric thread
  1. Product image of JACOB® - Pressure screws with metric thread
  2. Technical drawing with dimensions of JACOB® - Pressure screws with metric thread
Overlay

1

/2
Product image of JACOB® - Pressure screws with metric thread
  • Product image of JACOB® - Pressure screws with metric thread
  • Technical drawing with dimensions of JACOB® - Pressure screws with metric thread

JACOB® - Pressure screws with metric thread

BN 22110
Brand
JACOB®
Material
Polyamide
Material type
PA 6
Color
light gray RAL 7035

Description

Product features

  • Pressure screw: polyamide PA 6 GF30
  • Connecting thread: metric, as per EN 60423
  • Single part for use in combination with other components
  • Temperature range: -30 °C ... +100 °C
  • Protection grade: dependent on the combination with other components
