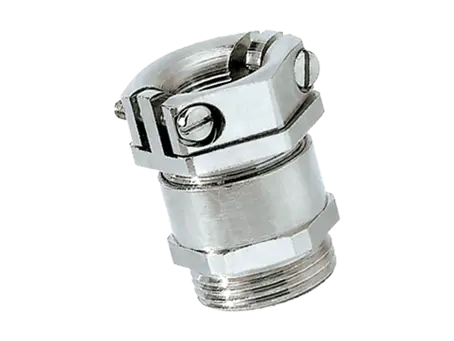

Product image of JACOB® - Cable glands with clamping jaws with Pg thread
  1. Product image of JACOB® - Cable glands with clamping jaws with Pg thread
  2. Technical drawing with dimensions of JACOB® - Cable glands with clamping jaws with Pg thread
Overlay

1

/2

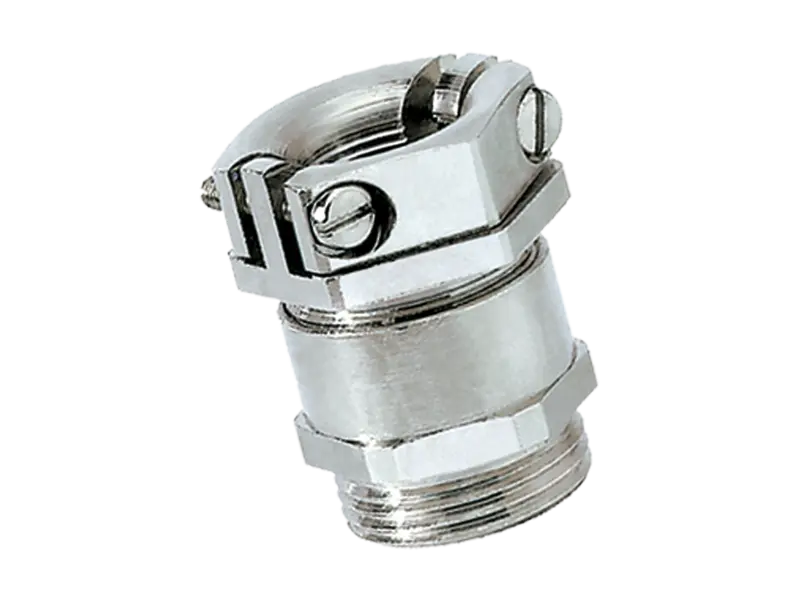

Product image of JACOB® - Cable glands with clamping jaws with Pg thread
  • Product image of JACOB® - Cable glands with clamping jaws with Pg thread
  • Technical drawing with dimensions of JACOB® - Cable glands with clamping jaws with Pg thread

JACOB® - Cable glands with clamping jaws with Pg thread

BN 22168
Brand
JACOB®
Material
Brass
Surface
nickel plated

Description

Product features

  • Pressure screw: brass CuZn39Pb3, nickel-plated
  • Bolts: stainless steel
  • Washers: steel, zinc-plated
  • Sealing ring: SBR/NBR, multiple perforation
  • Gland body: brass CuZn39Pb3, nickel-plated
  • Connecting thread: Pg, as per DIN 40430
  • Increased, centrical anchorage
  • Temperature range: -30 °C / ...+100 °C
  • Protection grade: IP54
