JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring

BN 22192
Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring

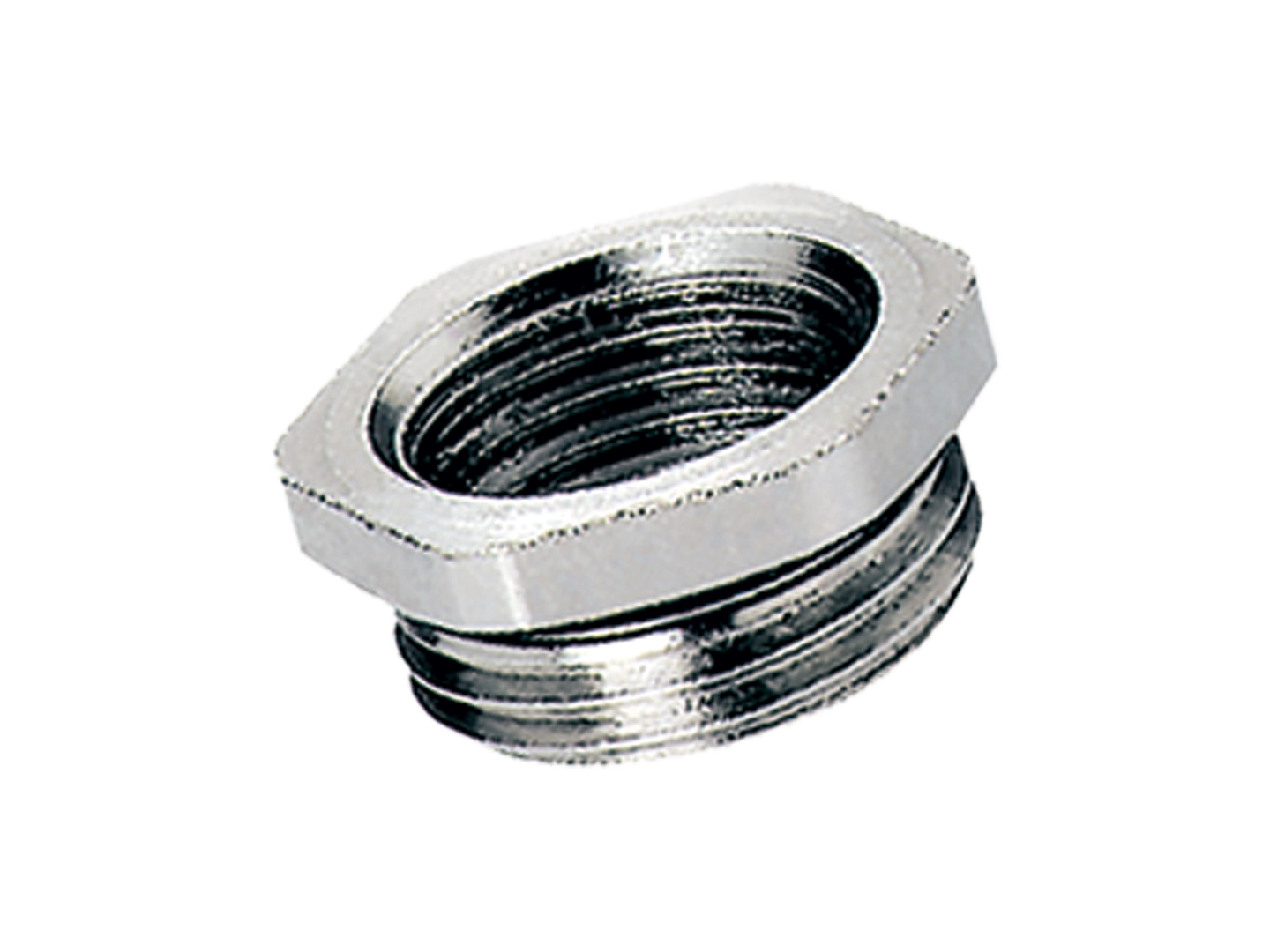

  1. Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring
  2. Technical drawing with dimensions of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring
Overlay

1

/2

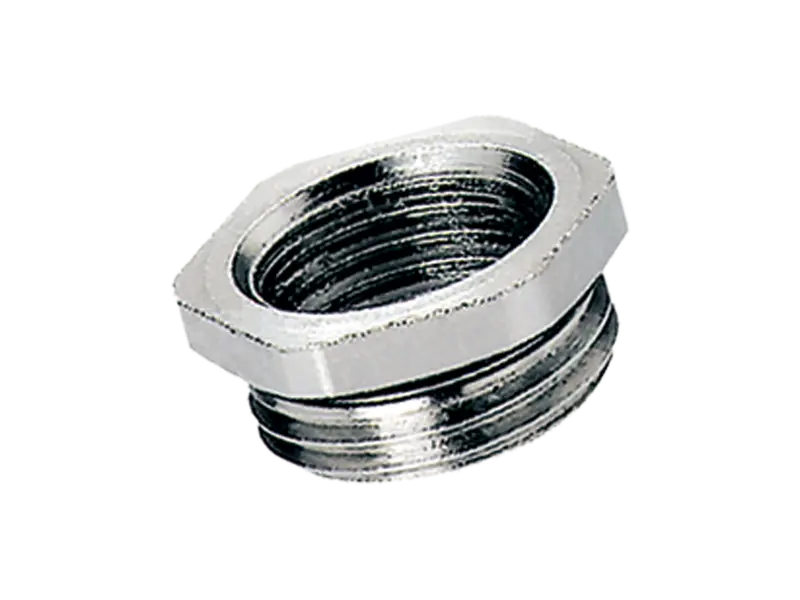

Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring

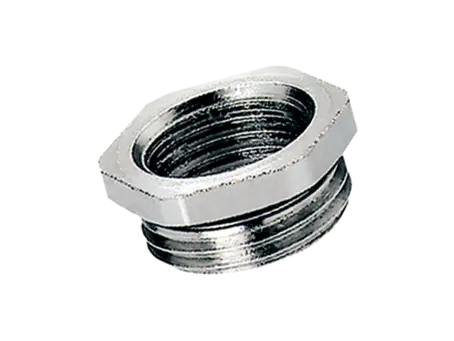

  • Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring
  • Technical drawing with dimensions of JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring

JACOB® - Reductions hexagonal for Pg thread on Pg thread, with o-ring

BN 22192
Brand
JACOB®
Material
Brass
Surface
nickel plated

Description

Product features

  • Reduction: brass CuZn39Pb3, nickel-plated
  • O-ring: Nitrile rubber NBR
  • External thread: Pg, as per DIN 40430
  • Internal thread: Pg, as per DIN 40430
  • Reduction of threaded or clearance holes to smaller thread size
  • Temperature range: -40 °C ... +100 °C
  • Protection grade: max. IP68, dependent on the combination with other components

Variants

CAD
