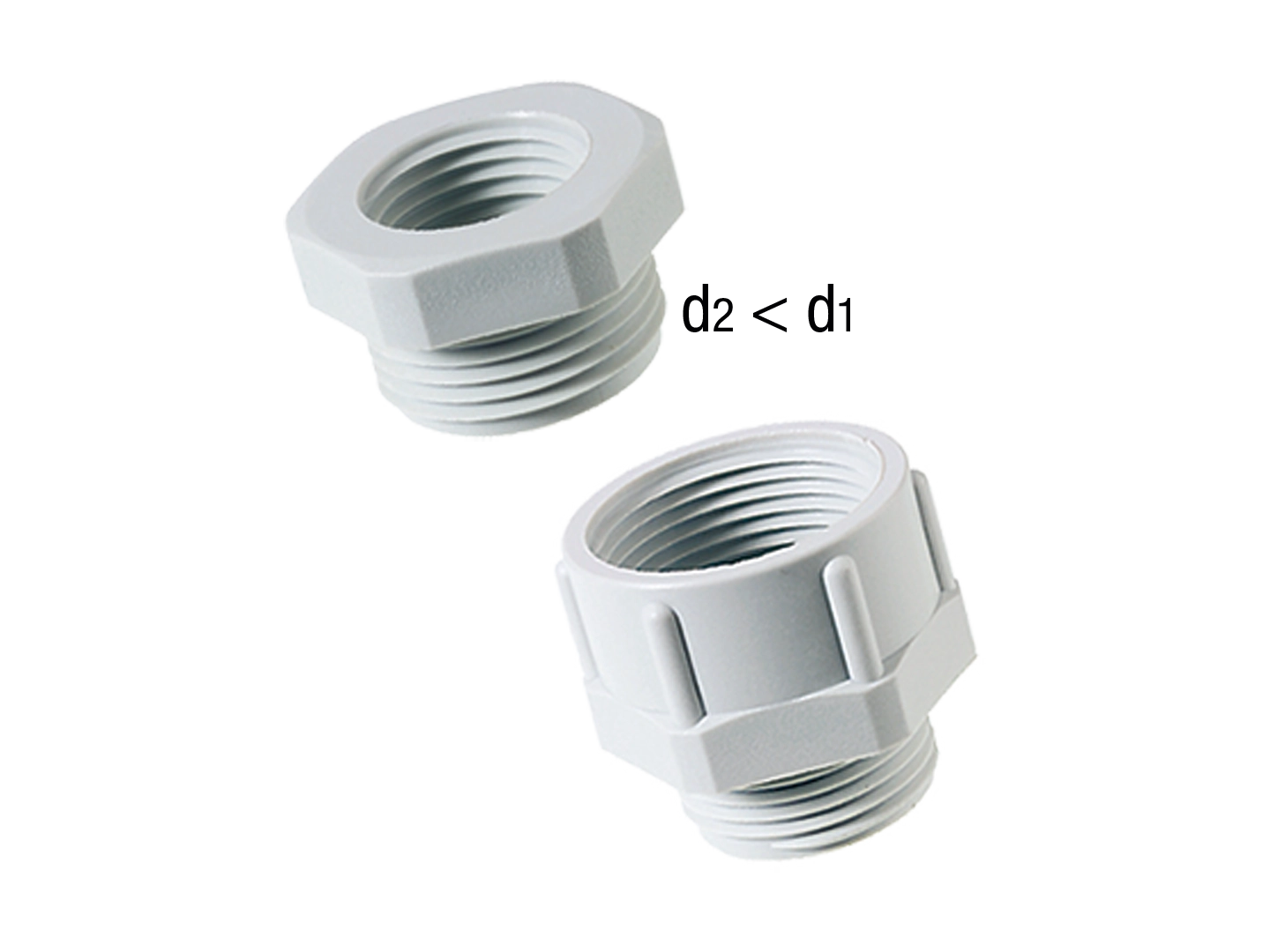

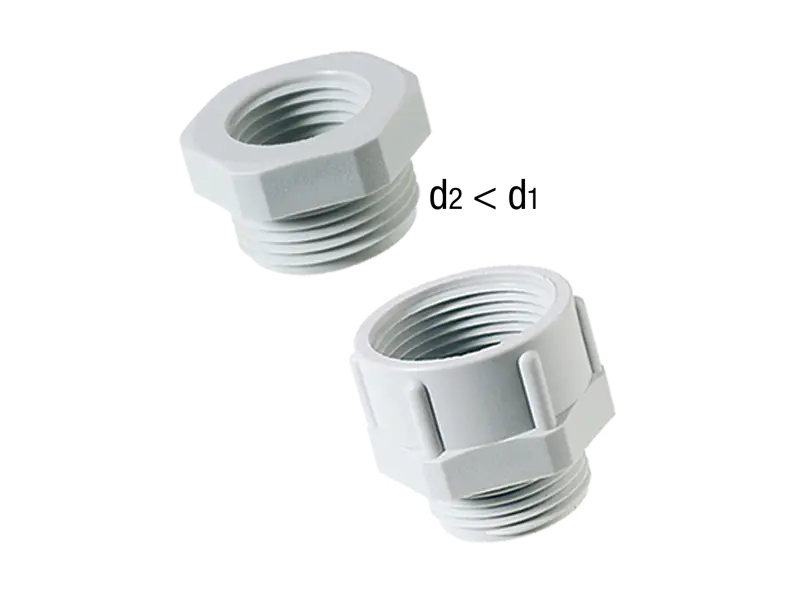

Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread
  1. Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread
  2. Technical drawing with dimensions of JACOB® - Reductions hexagonal for Pg thread on Pg thread
Overlay

1

/2
Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread
  • Product image of JACOB® - Reductions hexagonal for Pg thread on Pg thread
  • Technical drawing with dimensions of JACOB® - Reductions hexagonal for Pg thread on Pg thread

JACOB® - Reductions hexagonal for Pg thread on Pg thread

BN 22236
Brand
JACOB®
Material
Polyamide
Material type
PA 6

Description

Product features

  • Reduction: polyamide PA 6 GF30
  • External thread: Pg, as per DIN 40430
  • Internal thread: Pg, as per DIN 40430
  • Reduction of threaded or clearance holes to smaller thread size
  • Temperature range: -40 °C ... +100 °C
  • Protection grade: dependent on the combination with other components
