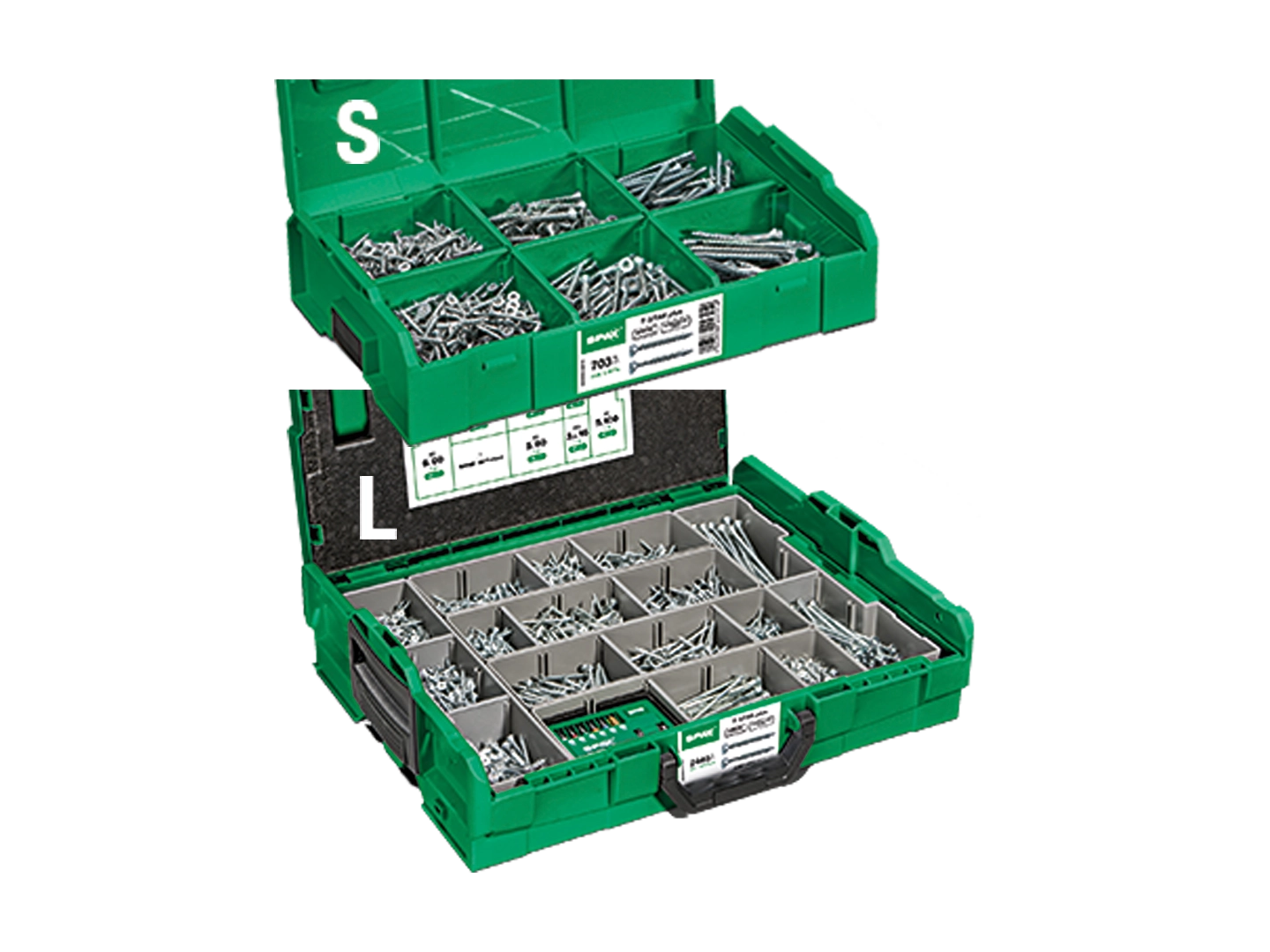

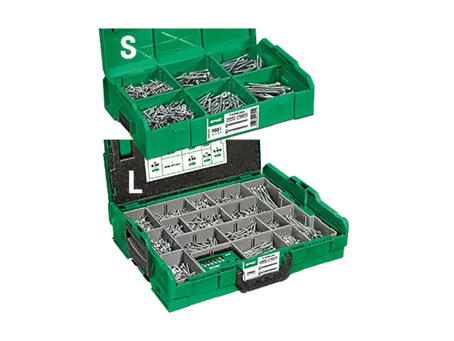

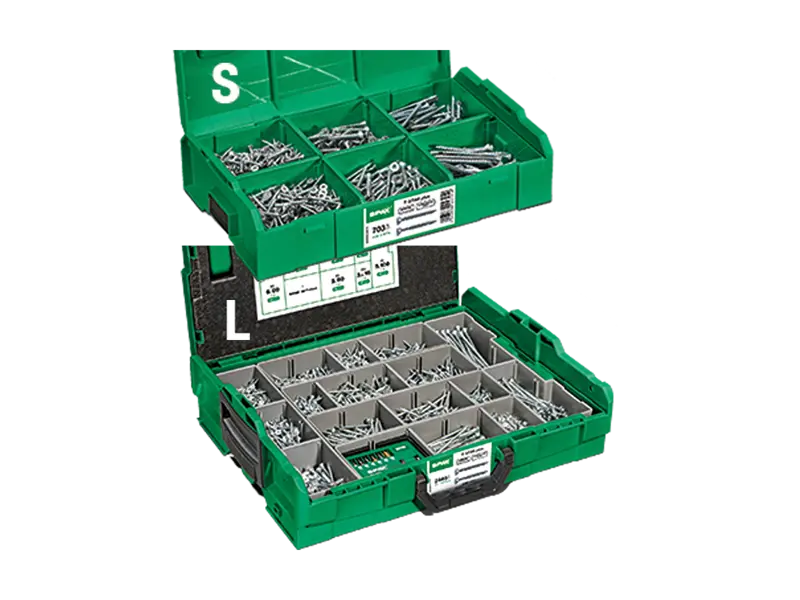

  1. Product image of SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point
  2. Technical drawing with dimensions of SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point
Overlay

1

/2
Product image of SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point
  • Product image of SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point
  • Technical drawing with dimensions of SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point

SPAX® L-BOXX - Assembly box of hexalobular (6 Lobe) socket flat countersunk head chipboard screws T-STAR plus, fully / partially threaded with 4CUT point

BN 21602
Headform
Countersunk head
Drive
Hexalobular socket
Thread
partially / fully threaded
Brand
SPAX®
Brandtype
L-BOXX
Material
Steel
Surface
WIROX®, added lubricant
Design
with 4CUT point
Material execution
case-hardened
Product application features

Description

Product features

Other documentation: www.spax.com

Additional information

The WIROX® coating is an alternative chromium free (VI) surface coating with considerably higher corrosion protection compared to yellow electrogalvanizing.

Safety Instructions

Transportation and storage

ISO 4042

Quenched and tempered fasteners ≥ 360 HV and tempered case-hardened fasteners with electroplated coatings: Susceptible to hydrogen embrittlement!

Further notice to residual risks can be found on our web page: Notes on use

Scope of Supply

Type S: 6 dimensions, 700 pieces, incl. 3 pieces SPAX® bits 1/4" T-STAR plus T 20

Type L: 16 dimensions, 2445 pieces, incl. 1 assorted box SPAX® BITcheck 1/4" T-STAR plus BN 20947

Type S:

Contents BN 20183

Quantity / ØxL

200 / 3,5x16 -- 200 / 3,5x30 -- 100 / 4x35 -- 100 / 4x40 -- 50/ 4x50

Contents BN 20184

Quantity / ØxL

50 / 4,5x60

Contents BN 20945

Quantity / ØxL

3 / BIT T20

Type L:

Contents BN 20183

Quantity / ØxL

400 / 3,5x16 -- 200 / 4x20 -- 150 / 4x25

Contents BN 20184

Quantity / ØxL

275 / 3,5x30 -- 225 / 3,5x35 -- 180 / 4x30 -- 175 / 4x35 -- 150 / 4x40 -- 140 / 4x45 -- 140 / 4x50 -- 100 / 4x60 -- 100 / 4,5x50 -- 60 / 5x60 -- 60 / 5x80 -- 60 / 5x100 -- 30 / 6x120

Contents BN 20947

Quantity / ØxL

1 / BITcheck
