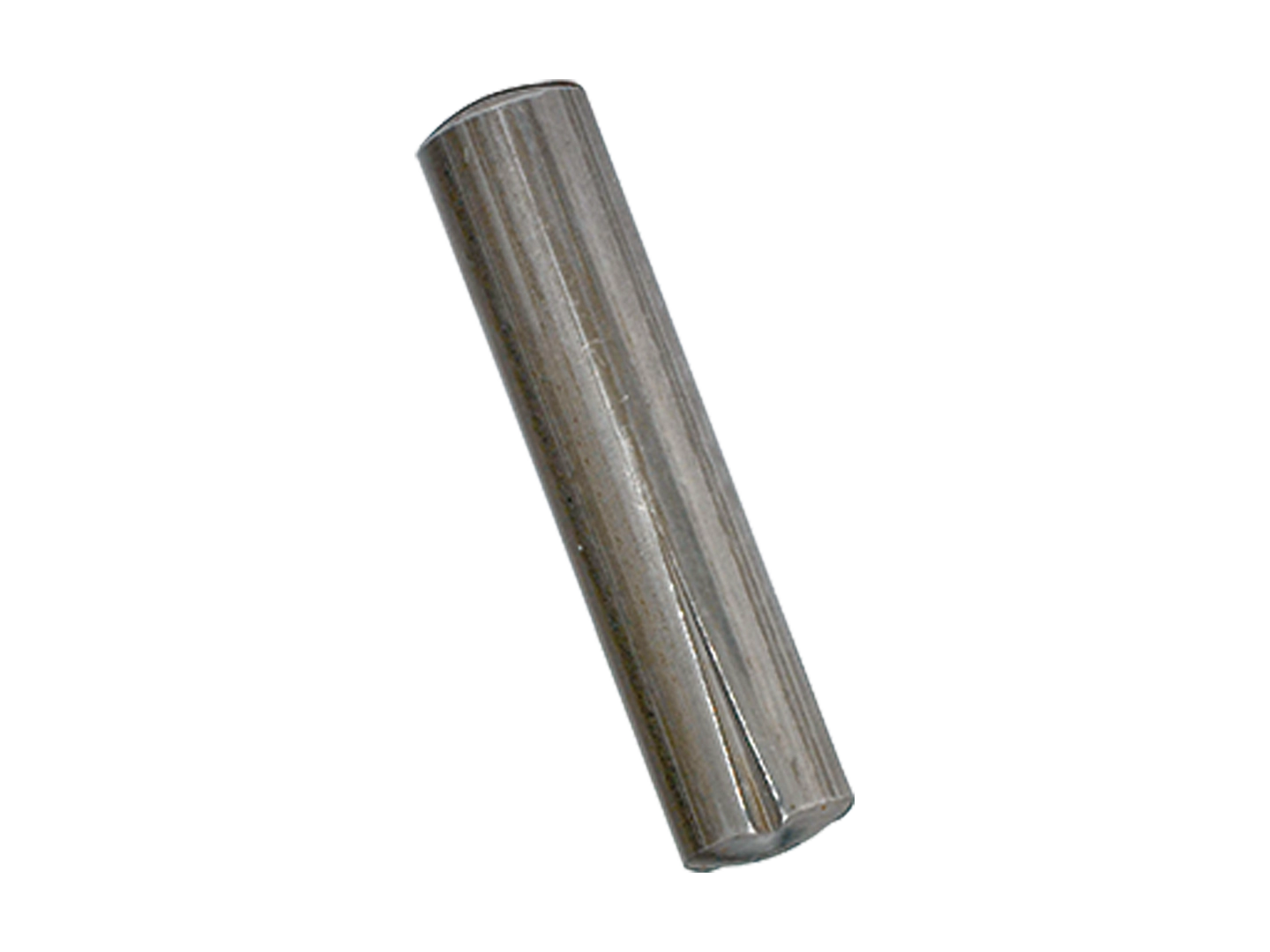

  1. Product image of Grooved taper pins half length taper grooved
  2. Technical drawing with dimensions of Grooved taper pins half length taper grooved

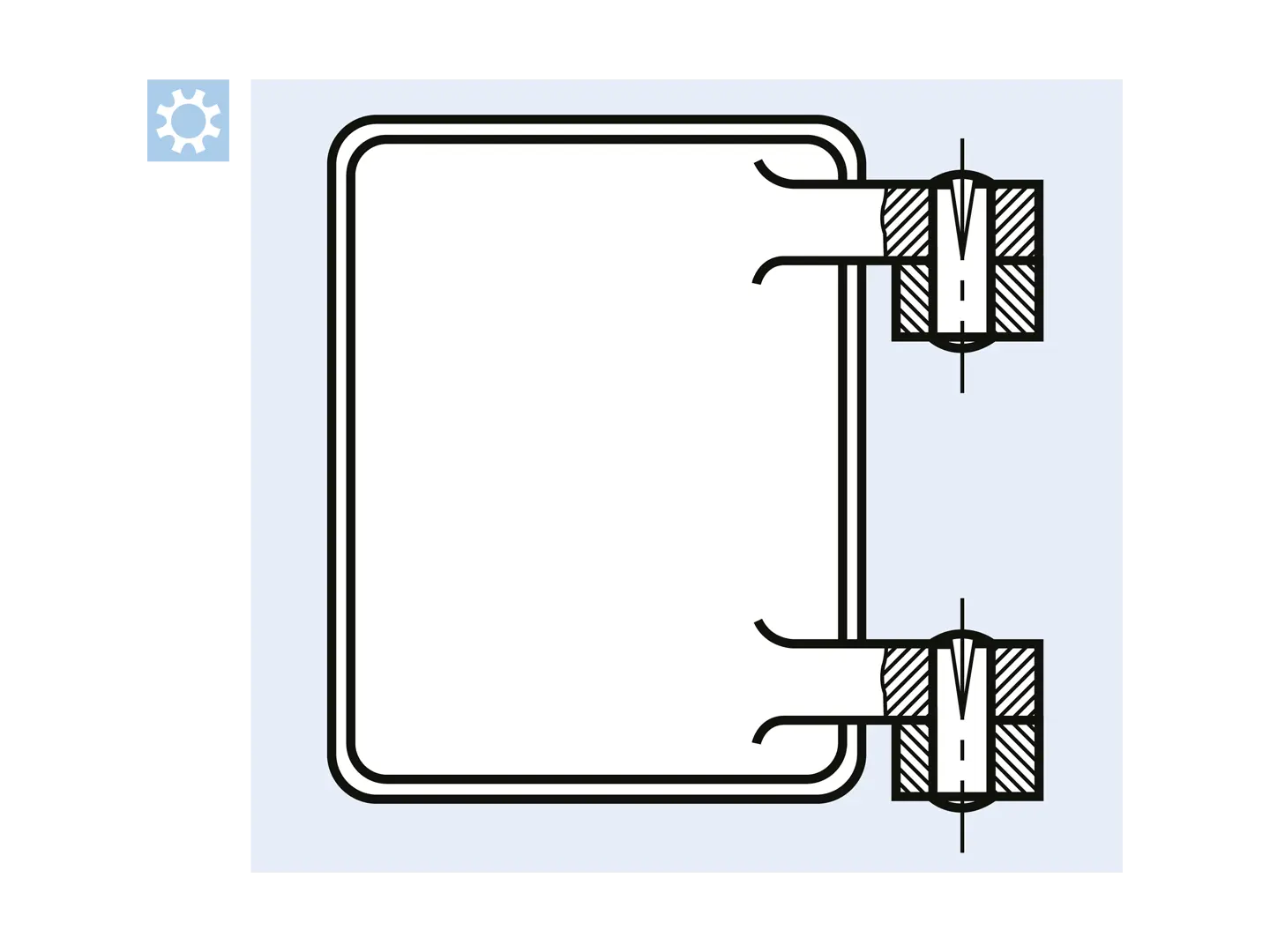

  3. Functional principle of Grooved taper pins half length taper grooved
Overlay

1

/3

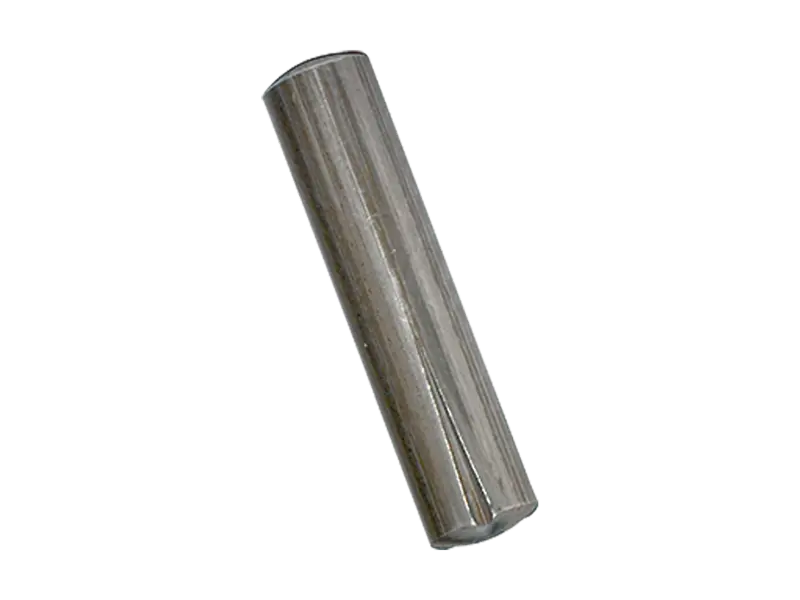

Product image of Grooved taper pins half length taper grooved
  • Product image of Grooved taper pins half length taper grooved
  • Technical drawing with dimensions of Grooved taper pins half length taper grooved
  • Functional principle of Grooved taper pins half length taper grooved

Grooved taper pins half length taper grooved

BN 883
Standard
DIN 1472 (Standard withdrawn) ~ISO 8745 ~UNI 7588 ~ČSN 022171
Material
Steel
Surface
plain
Material type
11SMnPb30

Functional Principle

As hinge pin in doors
