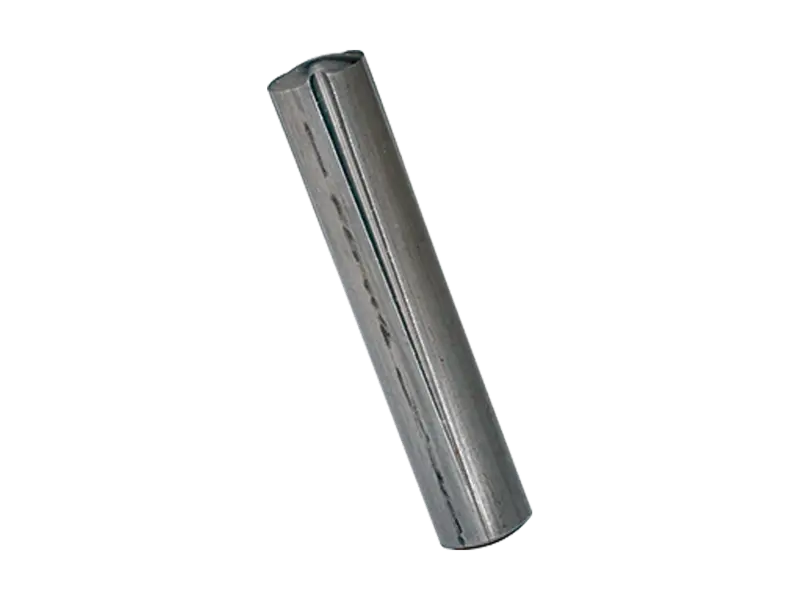

Product image of Grooved taper pins
  1. Product image of Grooved taper pins
  2. Technical drawing with dimensions of Grooved taper pins
  3. Functional principle of Grooved taper pins
Overlay

1

/3
Product image of Grooved taper pins
  • Product image of Grooved taper pins
  • Technical drawing with dimensions of Grooved taper pins
  • Functional principle of Grooved taper pins

Grooved taper pins

BN 882
Standard
DIN 1471 (Standard withdrawn) ~ISO 8744 ~UNI 7586 ~ČSN 022170
Material
Steel
Material type
11SMnPb30
Surface
plain

Description

Product features

  • REACH: CAS-No 7439-92-1, Pb >0.1%

Additional information

Other supply possibilities on request: grooved pins made of stainless steel or plastic.

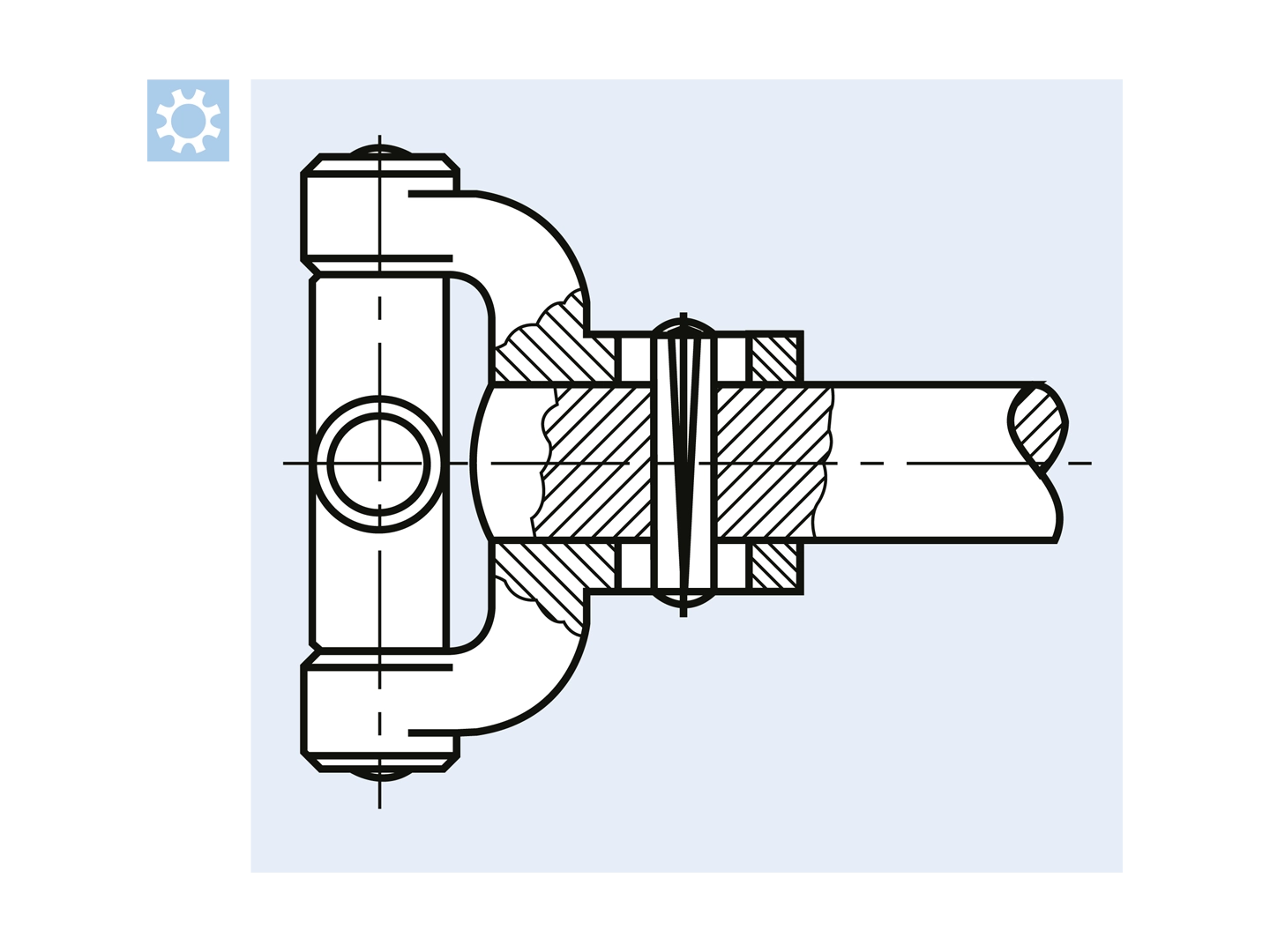

Functional Principle

As driving pin on a drive shaft
