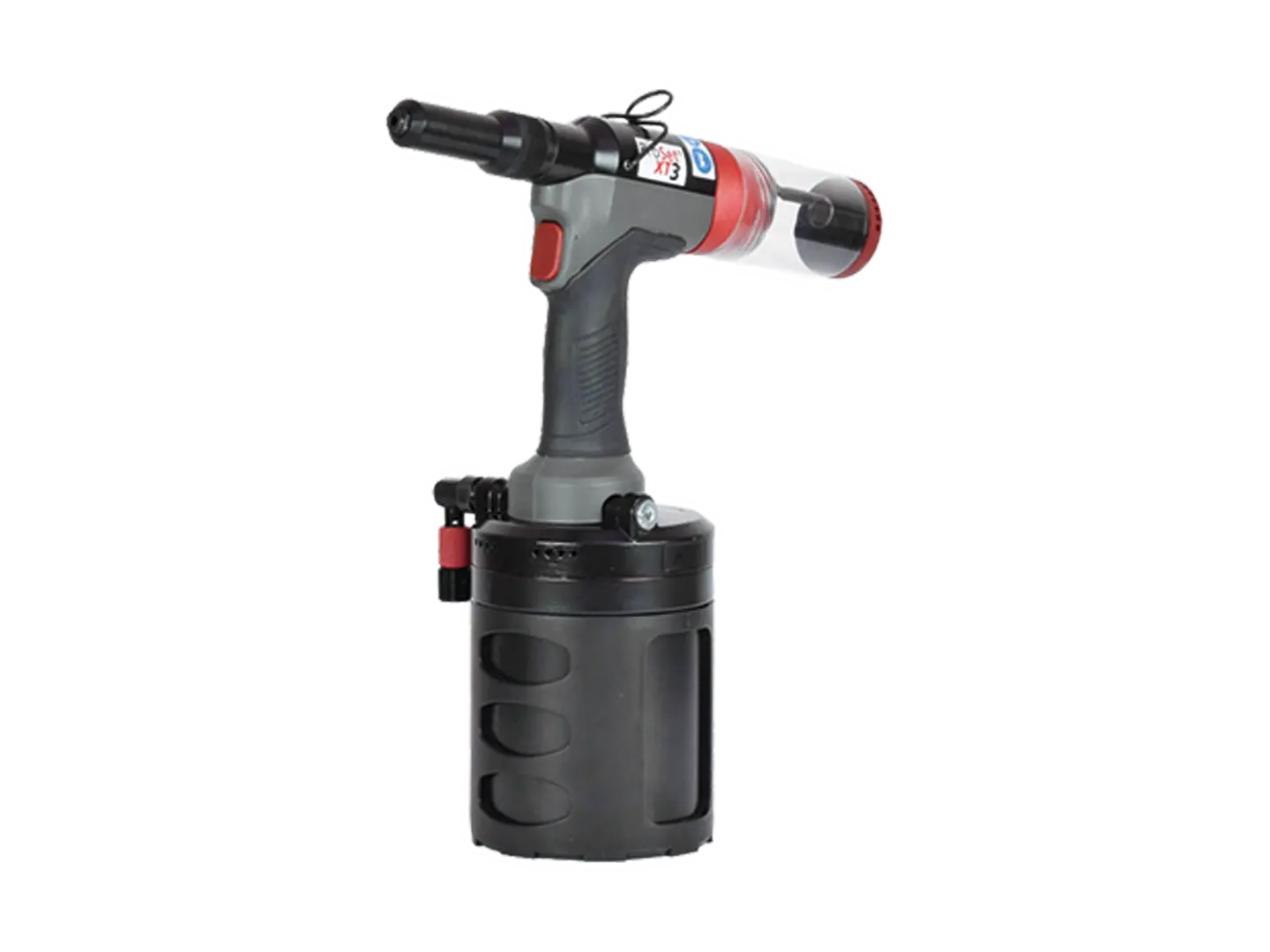

Product features

• Equipped for standard rivets with diameter 4,8 and 6,4 mm
• Equipment for further dimensions and rivet types can be requested!
• Weight: 2,14 kg (incl. nose equipment)
• Pull force at 5,5 bar: 17 kN
• Force-weight ratio: 7,94 kN/kg
• Stroke: min. 26 mm
• Cycle time (approximate): 0,9 sec
• Working air pressure: 5-7 bar
• Free air volume at 5,5 bar: 6,3 l
• Noise level: 78,4 dB (A)
• With standard nose assembly 76003-15100
