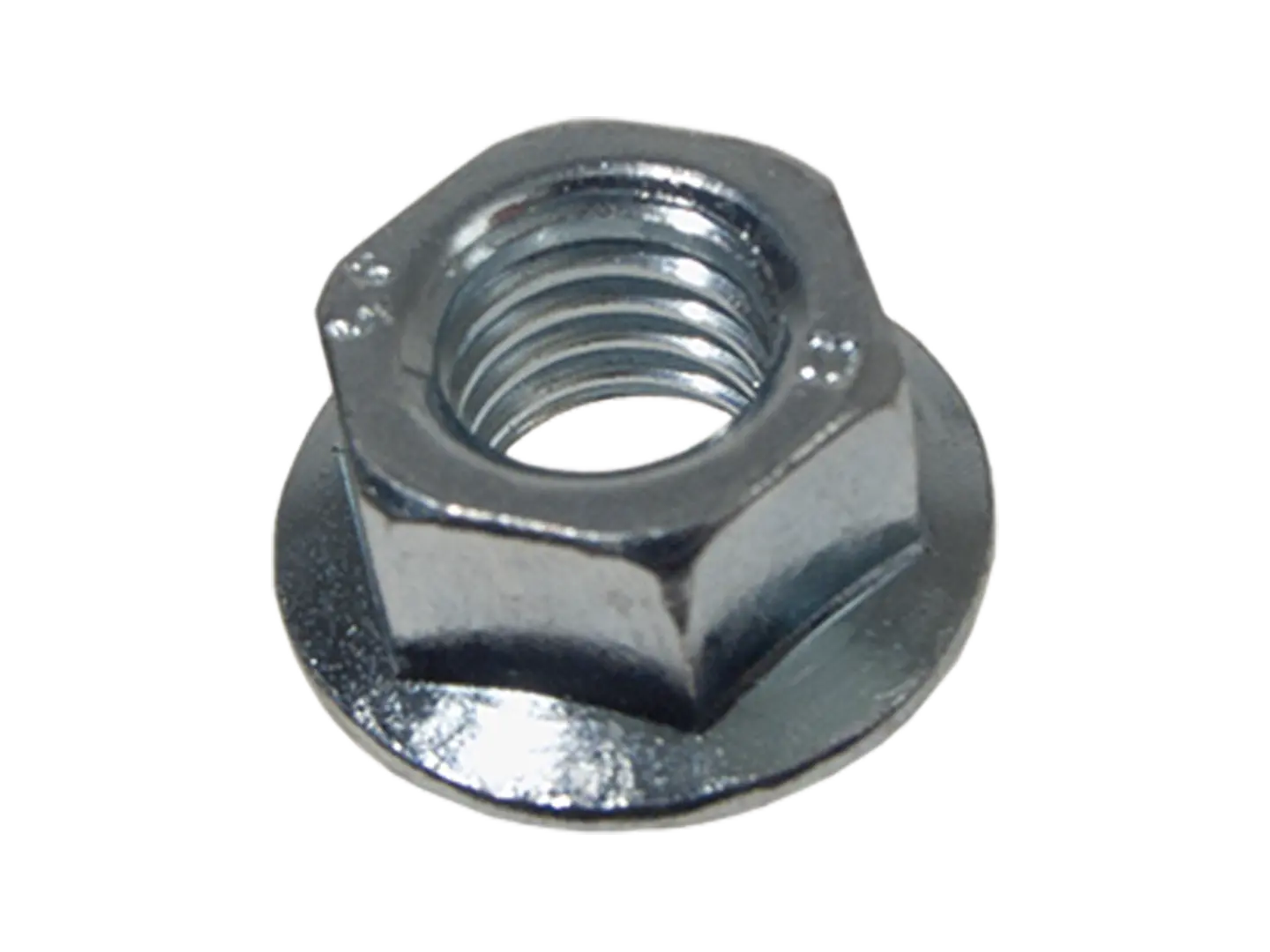

Product image of Hex nuts with flange and serrations
  • Product image of Hex nuts with flange and serrations
  • Technical drawing with dimensions of Hex nuts with flange and serrations
  • Functional principle of Hex nuts with flange and serrations

Hex nuts with flange and serrations

BN 30312
Standard
~DIN 6923 (Standard withdrawn) ~ISO 4161
Material
Steel
Property class
8
Surface
zinc plated blue

Functional Principle

1. Tightening: teeth penetrate the surface

2. Loosening: teeth shear off material

3. Surface condition after loosening
