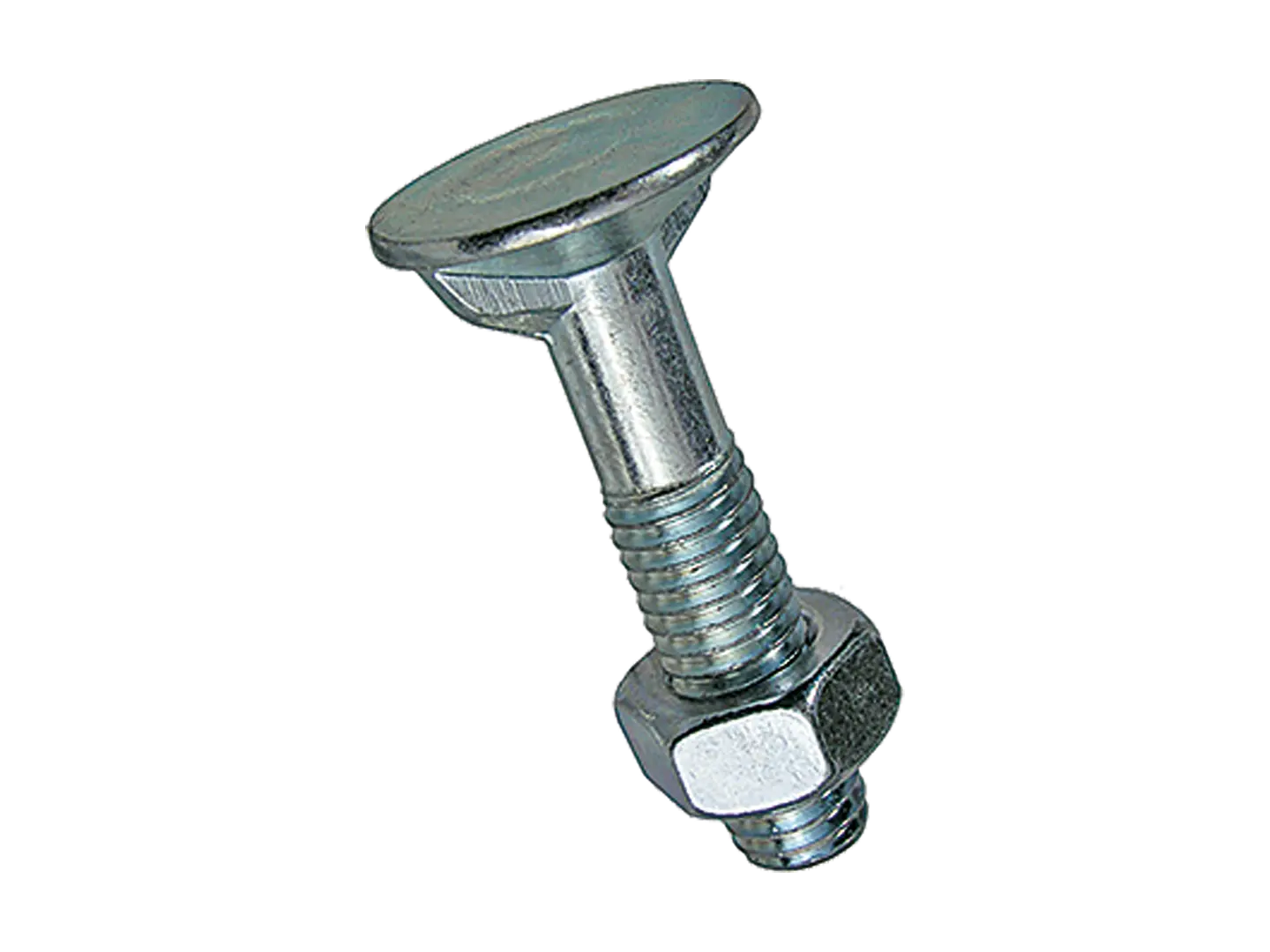

  1. Product image of Flat head bolts with double fins with hex nut
  2. Technical drawing with dimensions of Flat head bolts with double fins with hex nut
Overlay

1

/2

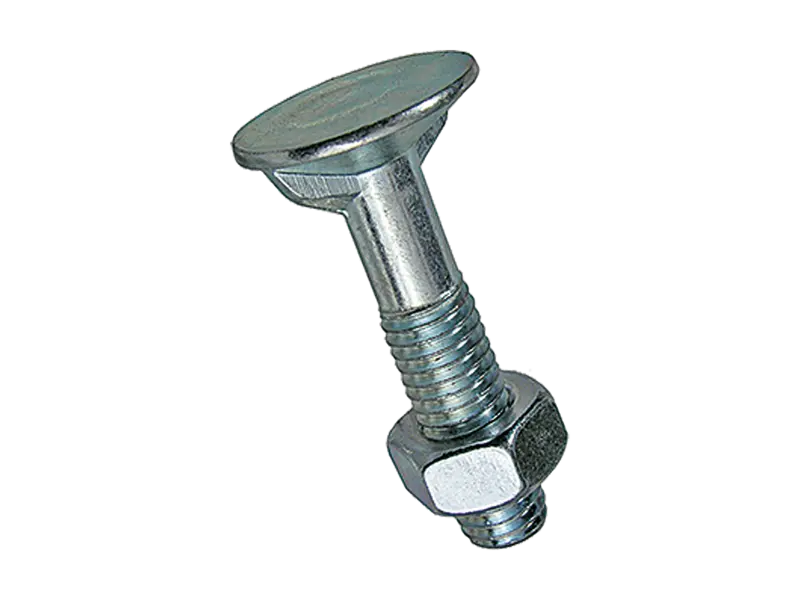

Product image of Flat head bolts with double fins with hex nut
  • Product image of Flat head bolts with double fins with hex nut
  • Technical drawing with dimensions of Flat head bolts with double fins with hex nut

Flat head bolts with double fins with hex nut

BN 251
Standard
DIN 25195
Headform
Countersunk head
Thread
partially threaded
Material
Steel
Property class
4.6
Surface
zinc plated blue

Description

Additional information

At manufacturer's option, the diameter of the shaft may correspond with the pitch diameter.
