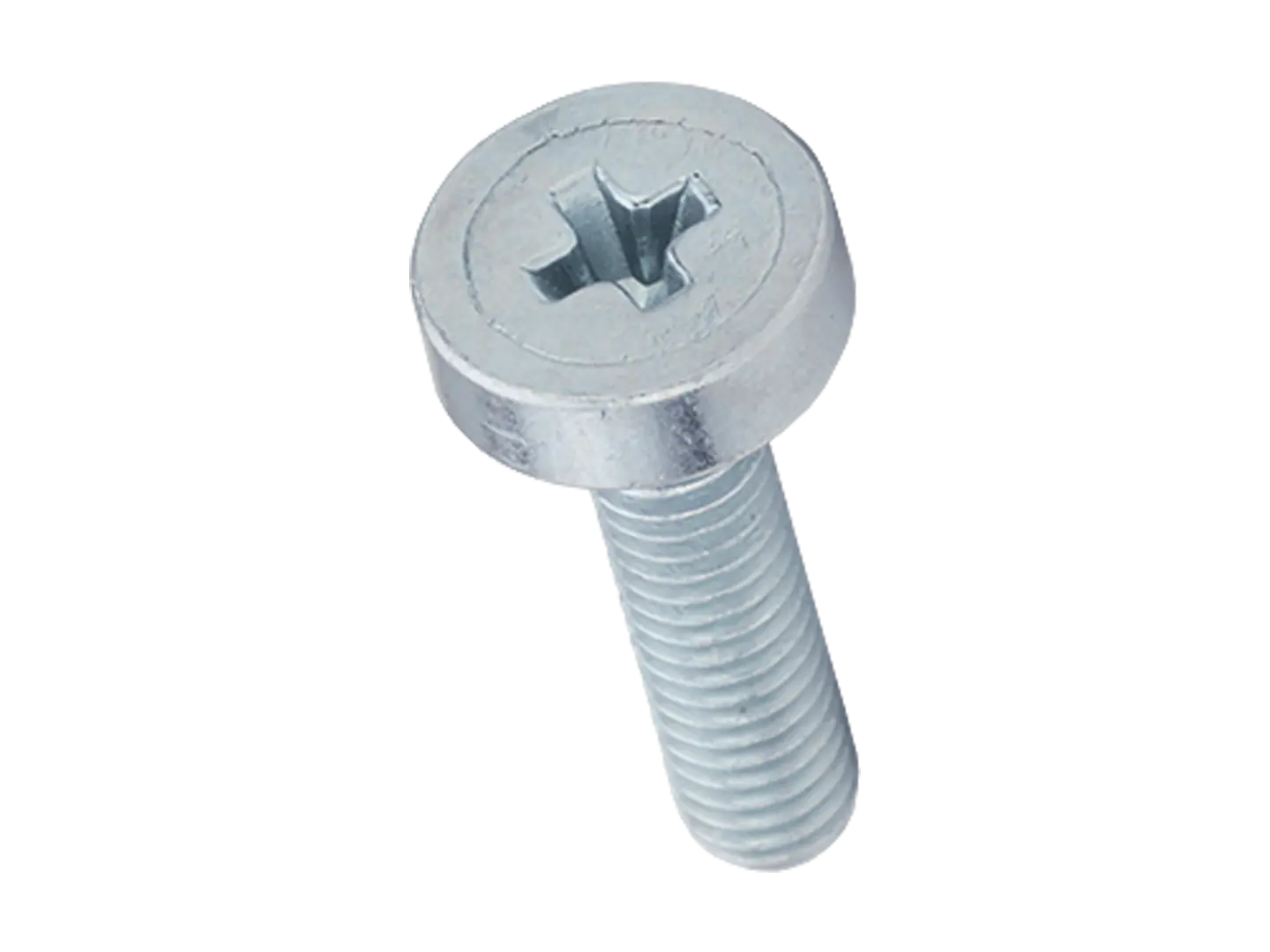

  1. Product image of PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials
  2. Technical drawing with dimensions of PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials

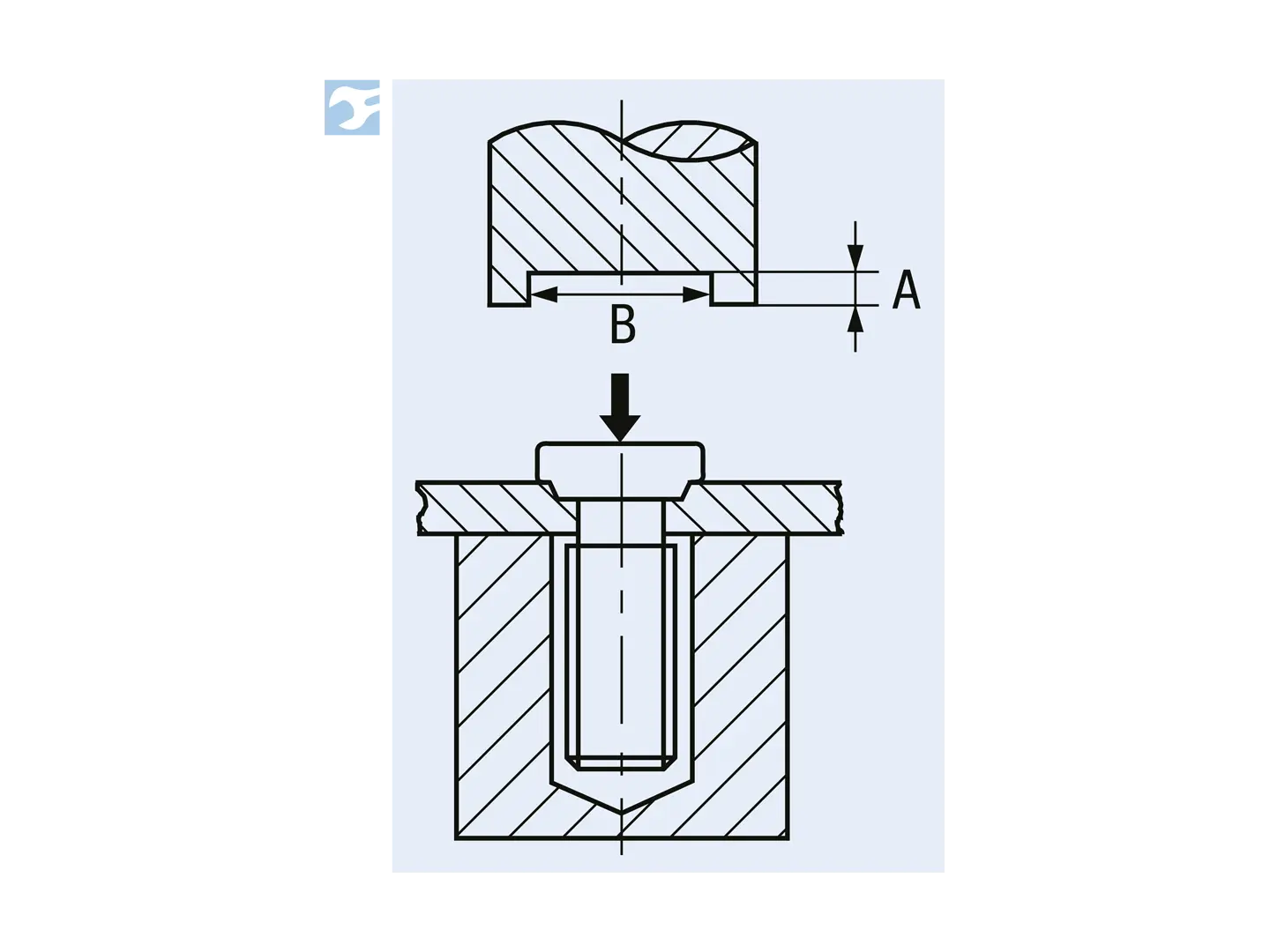

  3. Assembly illustration for PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials
Overlay

1

/3
Product image of PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials
  • Product image of PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials
  • Technical drawing with dimensions of PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials
  • Assembly illustration for PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials

PEM® SCBJ - Self-clinching captive panel screws with phillips pan head, for metallic materials

BN 33348
Drive
Cross recess H (Phillips)
Brand
PEM®
Brandtype
SCBJ
Material
Steel
Surface
zinc plated clear passivated
Material execution
hardened

Description

Product features

  • For use in sheet hardness max. HRB 80
