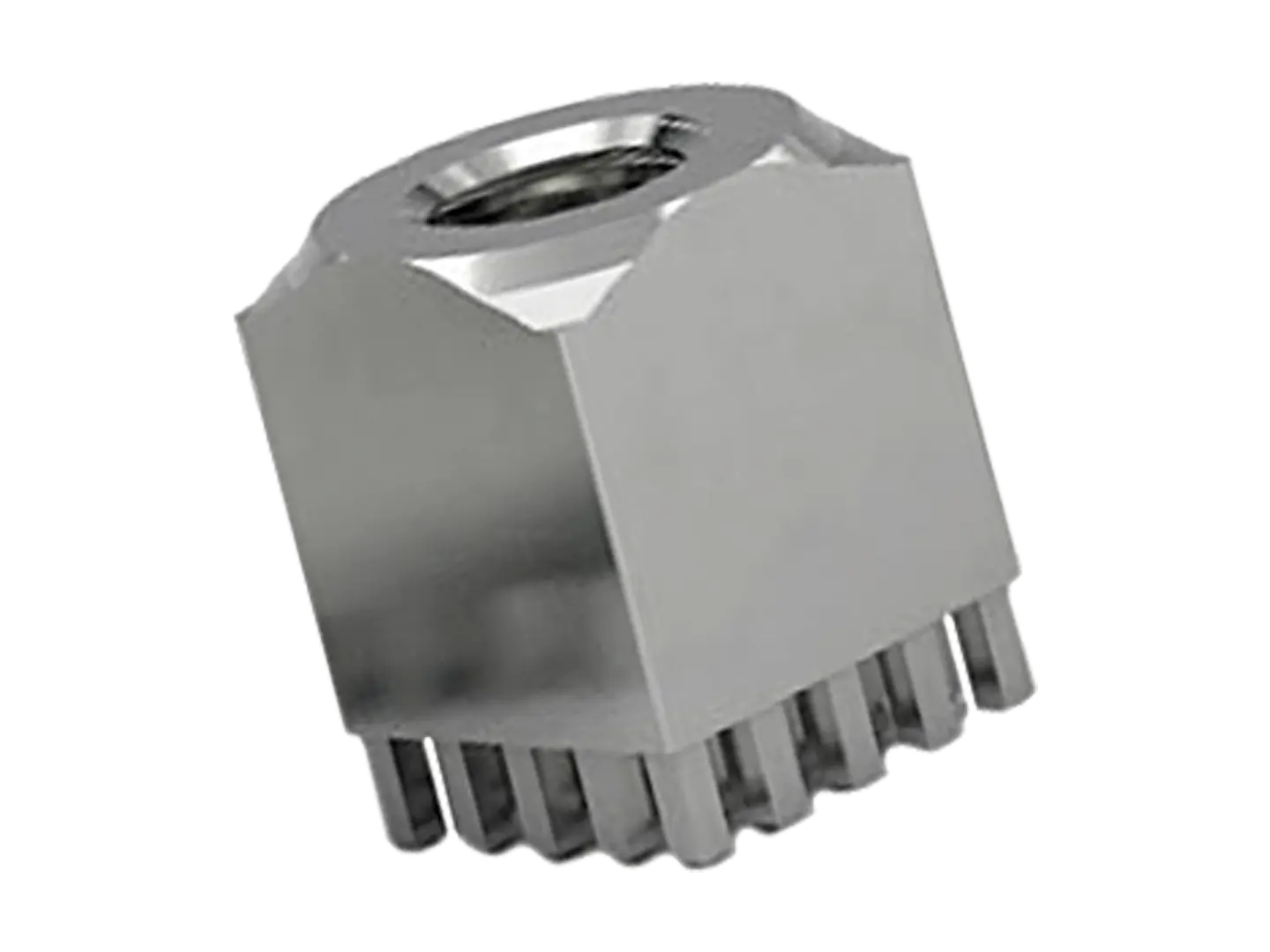

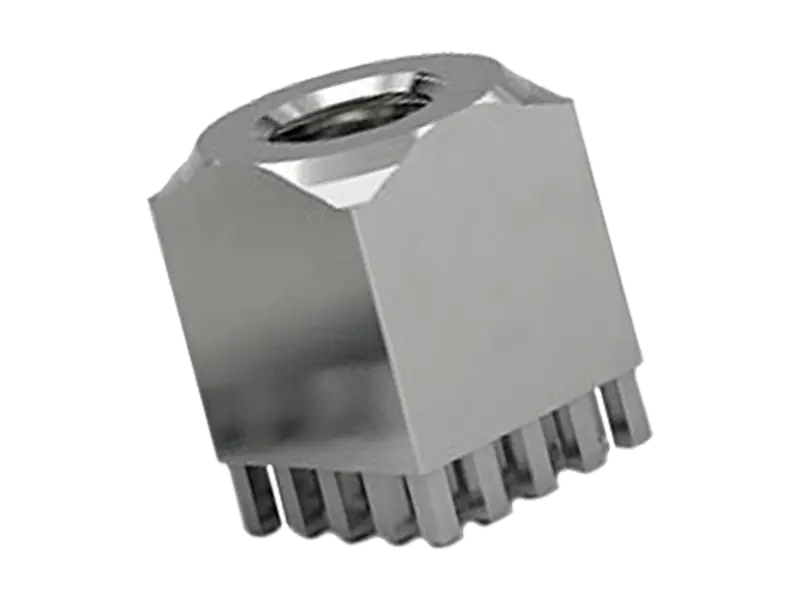

MTCONNECTIVITY Power Socket 02.1. - Power Socket with internal thread massive press-fit technology, pins across entire surface

BN 23101
Brand
MTCONNECTIVITY
Brandtype
Power Socket 02.1.
Material
Brass
Surface
tin-plated

Description

Product features

  • Base body: Brass CuZn39Pb3, tin-plated
  • High-current PCB connection up to 1000 A
  • For attaching cable lugs, midi fuses, mega fuses and more to PCBs
  • Holding force: according to IEC 352-5
  • Press-fit force: max. 250 N per pin / min. 40 N per pin
  • Press-out force: min. 30 N per pin
  • PCB thickness: min. 1,6 mm
