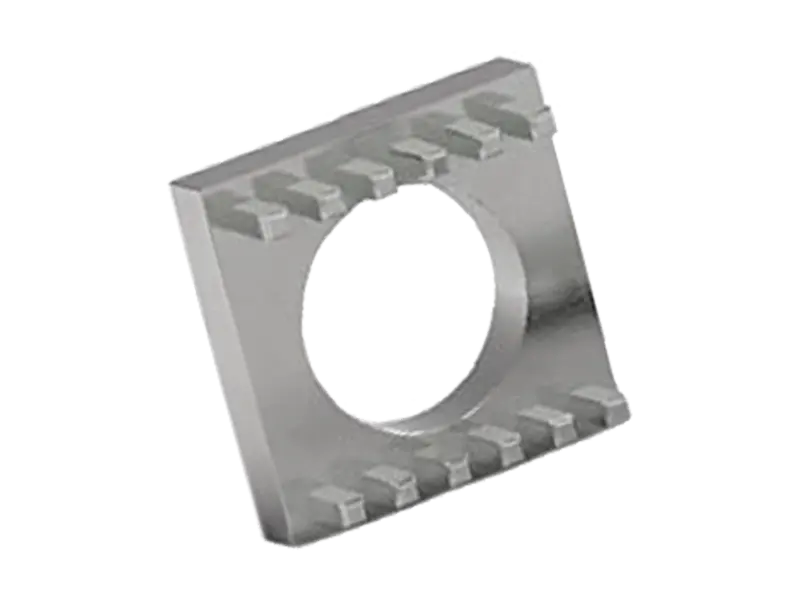

Product features

• Base body: Brass CuZn39Pb3, tin-plated
• High-current PCB connection up to 1000 A
• Protection of PCB against mechanical stresses
• For fastening cable lugs and large, heavy components such as battery isolating switches
• Holding force: according to IEC 352-5
• Press-fit force: max. 250 N per pin / min. 40 N per pin
• Press-out force: min. 30 N per pin
• PCB thickness: min. 1,6 mm
