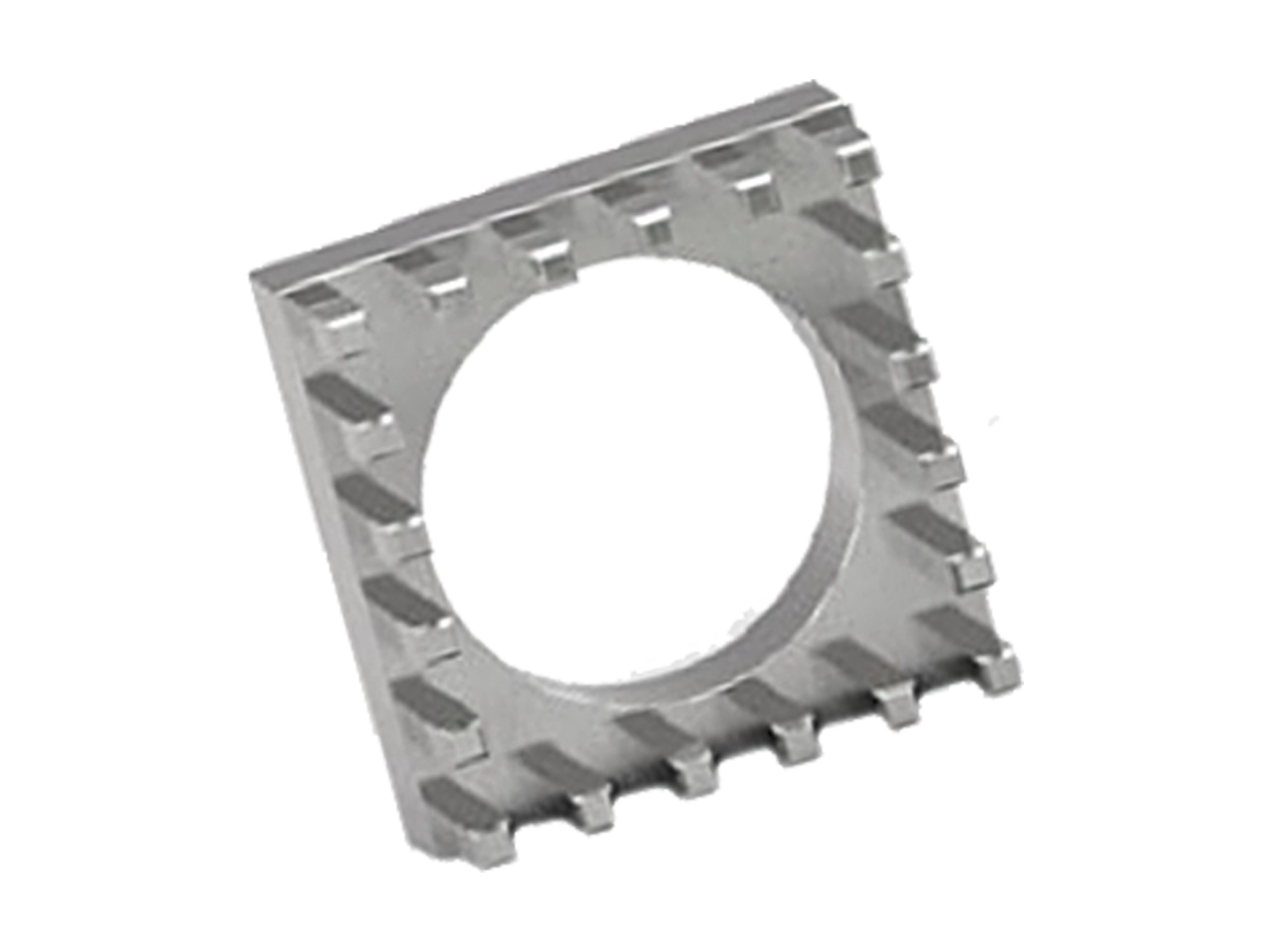

MTCONNECTIVITY Power 2 Ground 09.2. - Power 2 Ground ground two-piece, Pins arranged arround edge

BN 23110
Overlay

1

/2

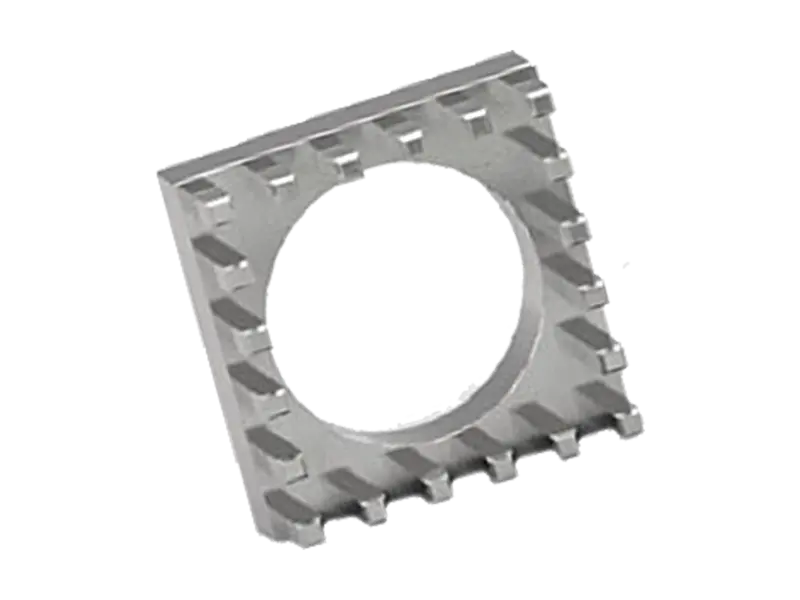

MTCONNECTIVITY Power 2 Ground 09.2. - Power 2 Ground ground two-piece, Pins arranged arround edge

BN 23110
Brand
MTCONNECTIVITY
Brandtype
Power 2 Ground 09.2.
Material
Brass
Surface
tin-plated

Description

Product features

  • Base body: Brass CuZn39Pb3, tin-plated
  • High-current PCB connection up to 1000 A
  • Protection of PCB against mechanical stresses
  • For fastening cable lugs and large, heavy components such as battery isolating switches
  • Holding force: according to IEC 352-5
  • Press-fit force: max. 250 N per pin / min. 40 N per pin
  • Press-out force: min. 30 N per pin
  • PCB thickness: min. 1,6 mm

Variants

CAD
