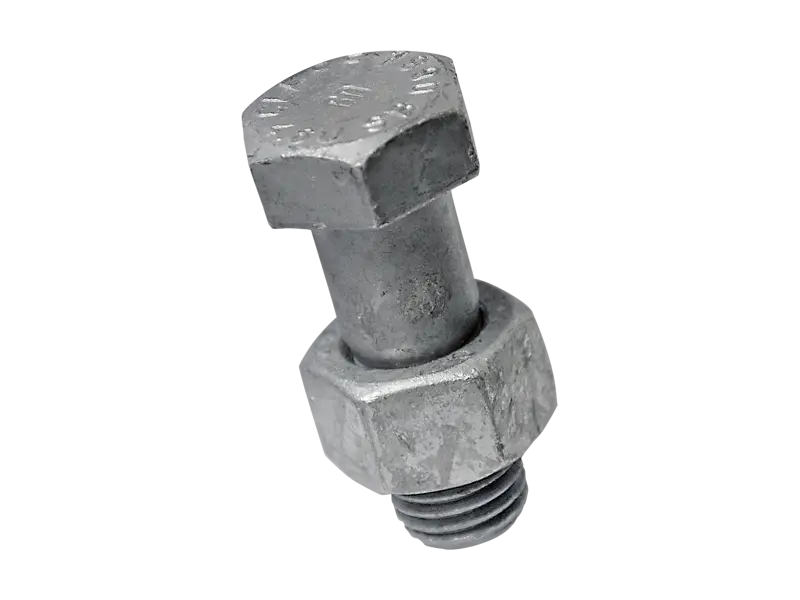

Product image of CLEFF - Sets with hex head bolt and nut
  1. Product image of CLEFF - Sets with hex head bolt and nut
  2. Technical drawing with dimensions of CLEFF - Sets with hex head bolt and nut
  3. Functional principle of CLEFF - Sets with hex head bolt and nut
Overlay

1

/3
Product image of CLEFF - Sets with hex head bolt and nut
  • Product image of CLEFF - Sets with hex head bolt and nut
  • Technical drawing with dimensions of CLEFF - Sets with hex head bolt and nut
  • Functional principle of CLEFF - Sets with hex head bolt and nut

CLEFF - Sets with hex head bolt and nut

BN 87
Standard
DIN 7990 EN 15048
Headform
Hexagon
Drive
Hexagon
Thread
partially threaded
Brand
CLEFF
Material
Steel
Surface
hot dip galvanized
Product application features
Property class
4.6
Product application features

Description

Product features

  • Observe the typical shank geometry. The screw head is additionally marked with the product-specific identification "7990".

Product information: www.vomcleff.de

Other documentation: www.bossard.com

Additional information

These fasteners meet all the requirements of EN 15048-1 as sets for non-preloaded bolted joints in metal construction. Inspection certificate EN 10204 3.1 available on request.

Functional Principle

These fasteners meet all the requirements of EN 15048-1 as sets for non-preloaded bolted joints in metal construction.

DIN 7989-1 is not part of delivery

ISO 4034 is the alternative to ISO 4032

Scope of Supply

Sets consist of:

1 bolt DIN 7990 steel 4.6U

1 nut ISO 4032/ ISO 4034 steel

Washers according to DIN 7989-1 are not included
