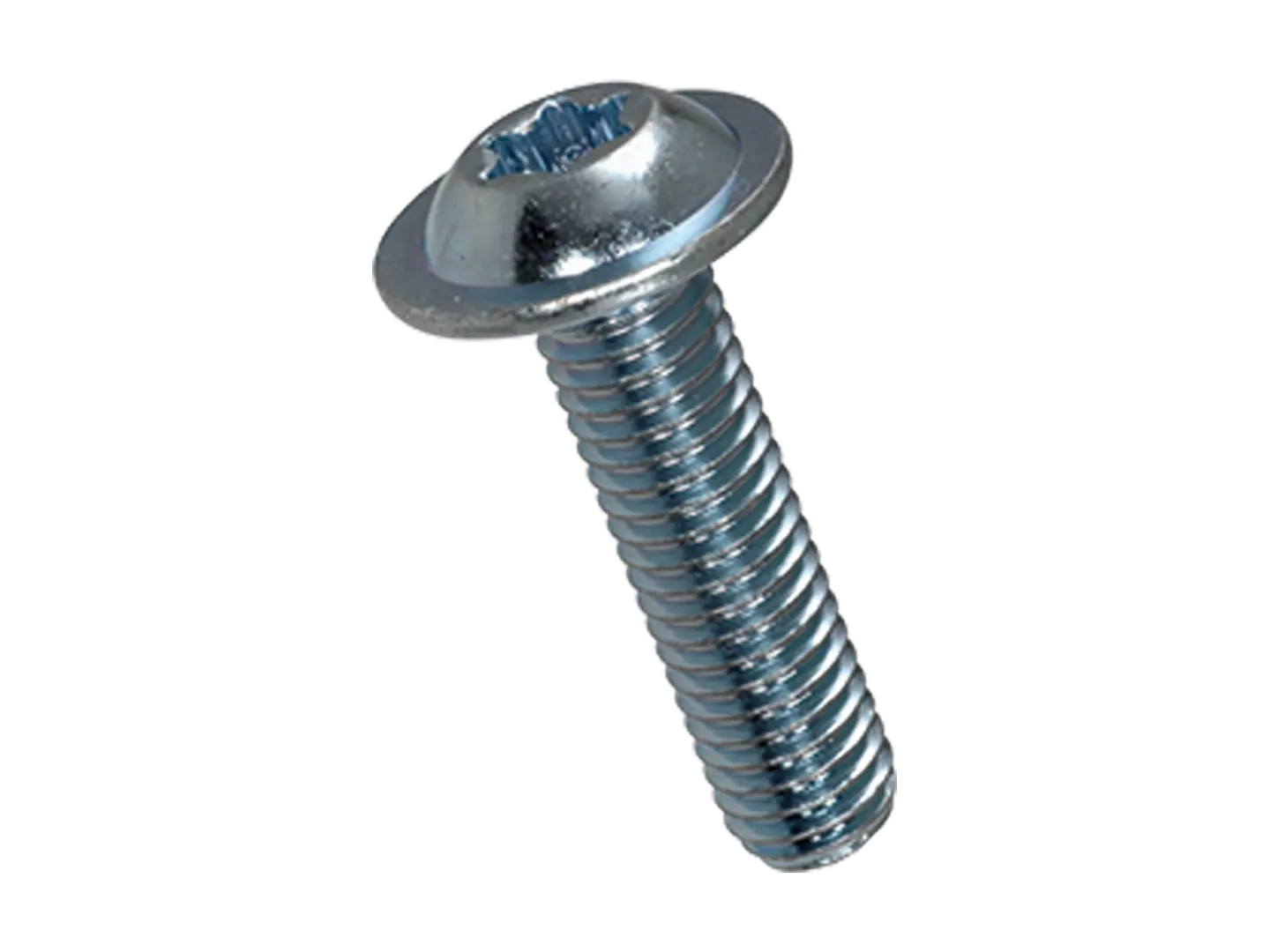

Product image of Hexalobular (6 Lobe) socket button head screws with collar fully threaded
  1. Product image of Hexalobular (6 Lobe) socket button head screws with collar fully threaded
  2. Technical drawing with dimensions of Hexalobular (6 Lobe) socket button head screws with collar fully threaded
Overlay

1

/2
Product image of Hexalobular (6 Lobe) socket button head screws with collar fully threaded
  • Product image of Hexalobular (6 Lobe) socket button head screws with collar fully threaded
  • Technical drawing with dimensions of Hexalobular (6 Lobe) socket button head screws with collar fully threaded

Hexalobular (6 Lobe) socket button head screws with collar fully threaded

BN 20367
Standard
~ISO 7380-2 ~DIN 34805-2
Headform
Button with collar
Drive
Hexalobular socket
Thread
fully threaded
Material
Steel
Surface
zinc plated blue
Property class
08.8

Description

Additional information

Fasteners to the given specification have a reduced loadability due to the head geometry according to ISO 898-1. Standard products with similar geometries in accordance with ISO 7380-4 are available upon request.
