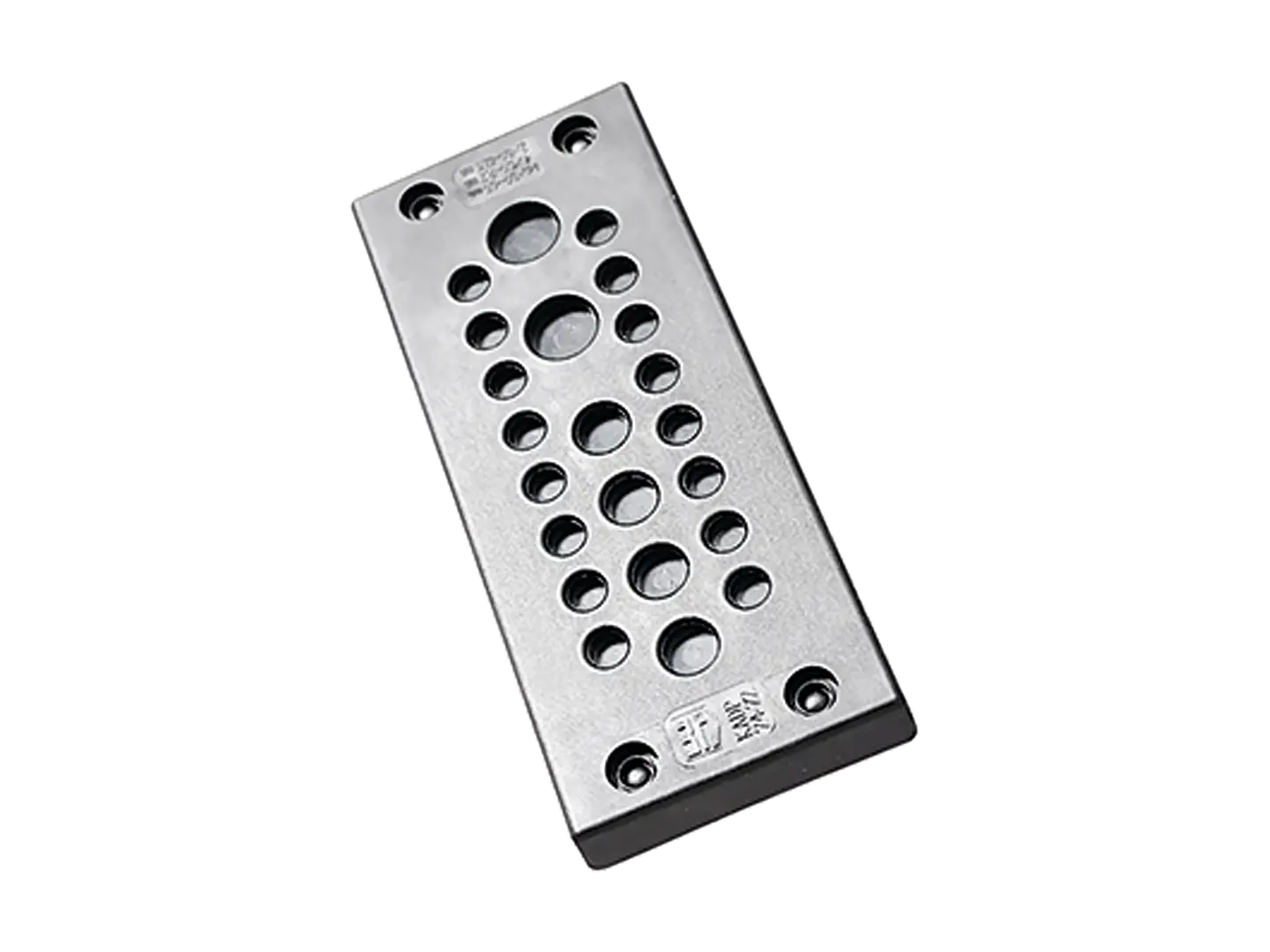

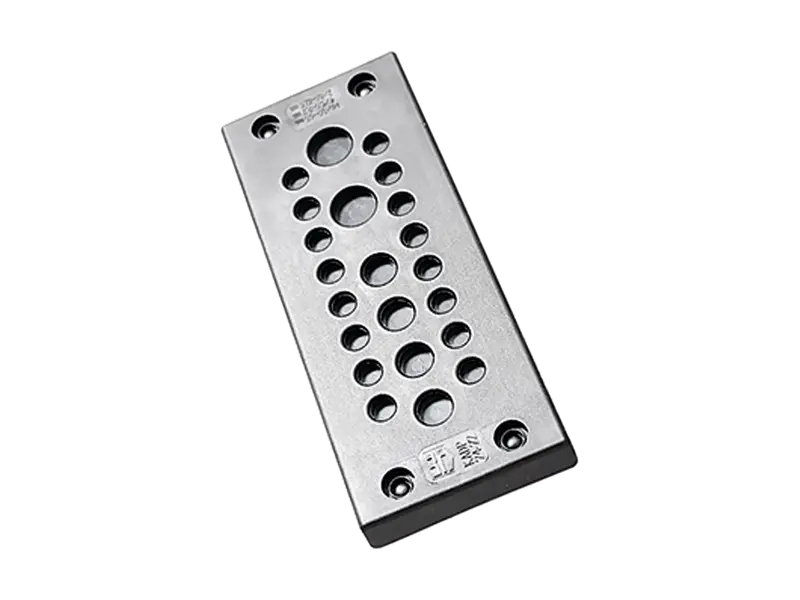

Product features

• Flange: Polyamide PA 6 V-0
• Elastomeric plate: EPDM according to automotive standards: VW 2.8.1 G50, DBL 5556.10; DBL 5556.20; DBL 5556.21; ozone resistant according to DIN 53509, level 0 (best level)
• Sealing: TPE TPV
• Technology: tool-free connecting technology for cabling of machines and equipment
• Application: for introduction of cables, tubes, pneumatic and hydraulic pipes
• Temperature range: -30 °C ... +100 °C
• Protection grade: IP66
• Overall dimension: L = 147,5 mm, L1 = 59,5 mm, H = 25 mm, H1 = 8,2 mm

Additional information

Testing standard: UL / CSA-File E140310 / UL514B.
