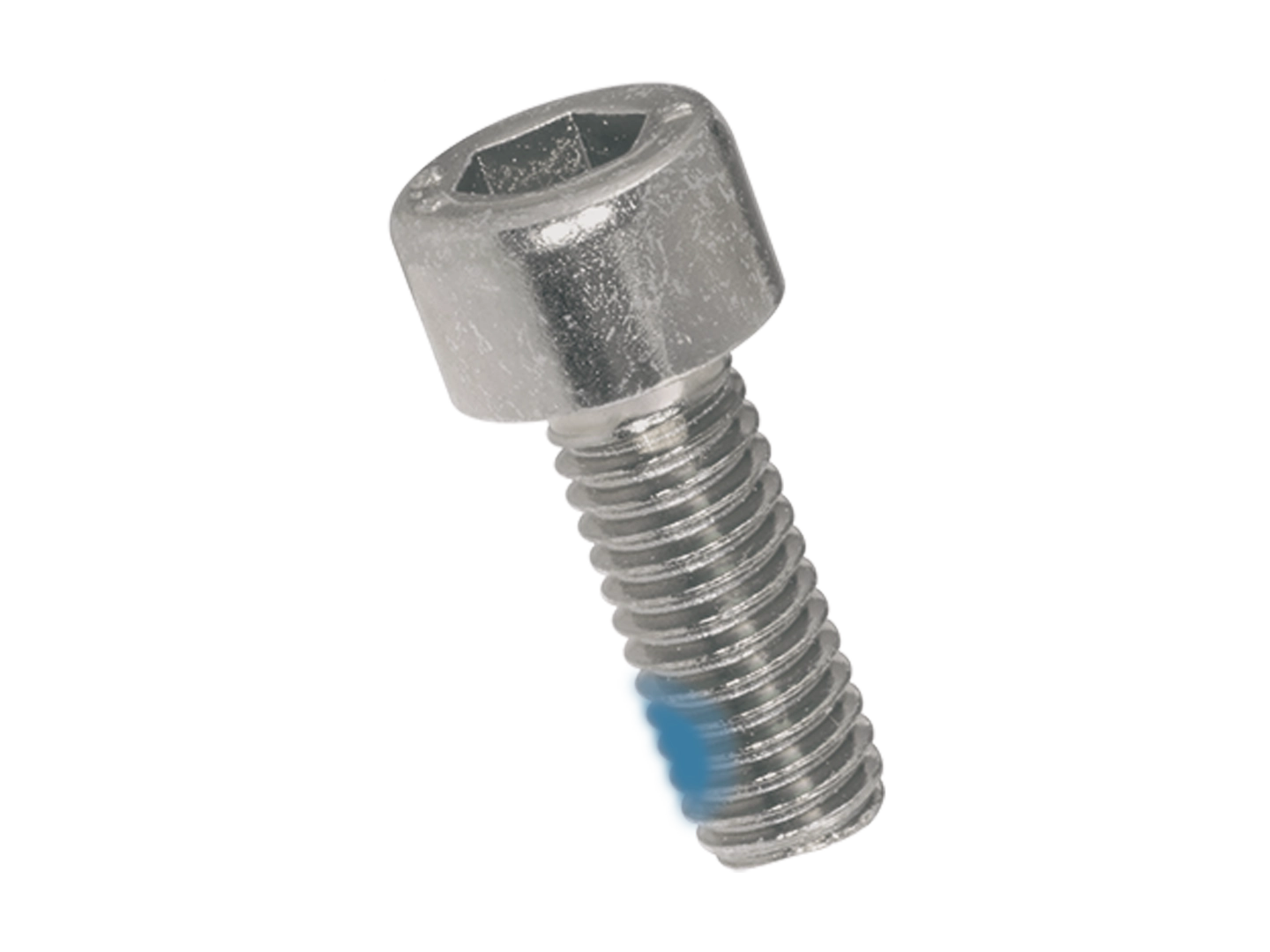

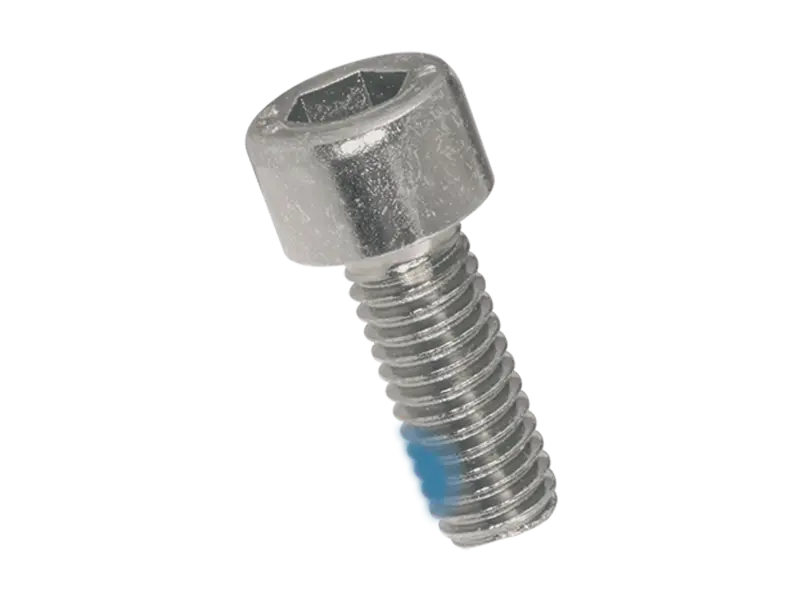

  1. Product image of
  2. Technical drawing with dimensions of
Overlay

1

/2
Product image of
  • Product image of
  • Technical drawing with dimensions of

BN 8706
Standard
DIN 912 (Standard withdrawn) ISO 4762 ~UNI 5931 ~ČSN 021143
Headform
Cylindrical
Drive
Hexagon socket
Thread
fully threaded
Material
Steel
Surface
zinc plated blue
Property class
8.8
Functional coating
Tuflok® Patch 180°

Description

Additional information

Coating angle α in the screw body area approx. 90°. Edge zone (spray transition) up to 180°. Coating length l1 = ~ 4 to 6 thread turns. Around 2 to 3 thread turns remain uncoated to ensure flawless installation (l2).
