Hex socket set screws with flat point and TufLok® patch

BN 5211
Product image of Hex socket set screws with flat point and TufLok® patch

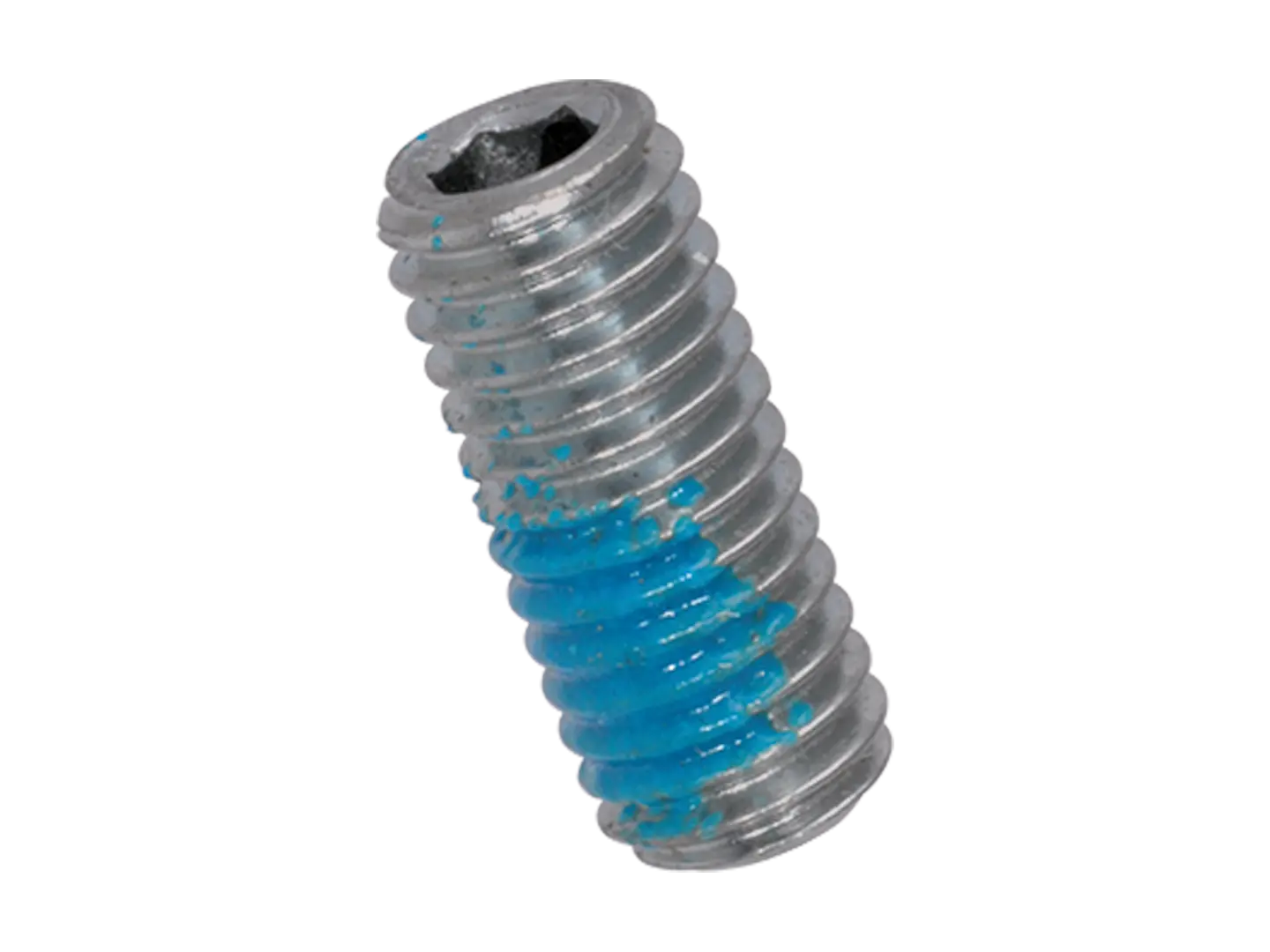

  1. Product image of Hex socket set screws with flat point and TufLok® patch
  2. Technical drawing with dimensions of Hex socket set screws with flat point and TufLok® patch
Overlay

1

/2
Product image of Hex socket set screws with flat point and TufLok® patch
  • Product image of Hex socket set screws with flat point and TufLok® patch
  • Technical drawing with dimensions of Hex socket set screws with flat point and TufLok® patch

Hex socket set screws with flat point and TufLok® patch

BN 5211
Standard
ISO 4026 DIN 913 ~UNI 5923 ~ČSN 021187
Drive
Hexagon socket
Material
Steel
Base coat
zinc flake coated
Functional coating
Tuflok® patch 180°
Hardness
45 H

Description

Additional information

Coating angle α in the screw body area approx. 90°. Edge zone (spray transition) up to 180°. Coating length l1 = ~ 4 to 6 thread turns. Around 2 to 3 thread turns remain uncoated to ensure flawless installation (l2).

Safety Instructions

Transportation and storage

Set screws are not intended to be tensile-loaded.
