WGR Rathmann - Segment clamping bolts

BN 261
Product image of WGR Rathmann - Segment clamping bolts

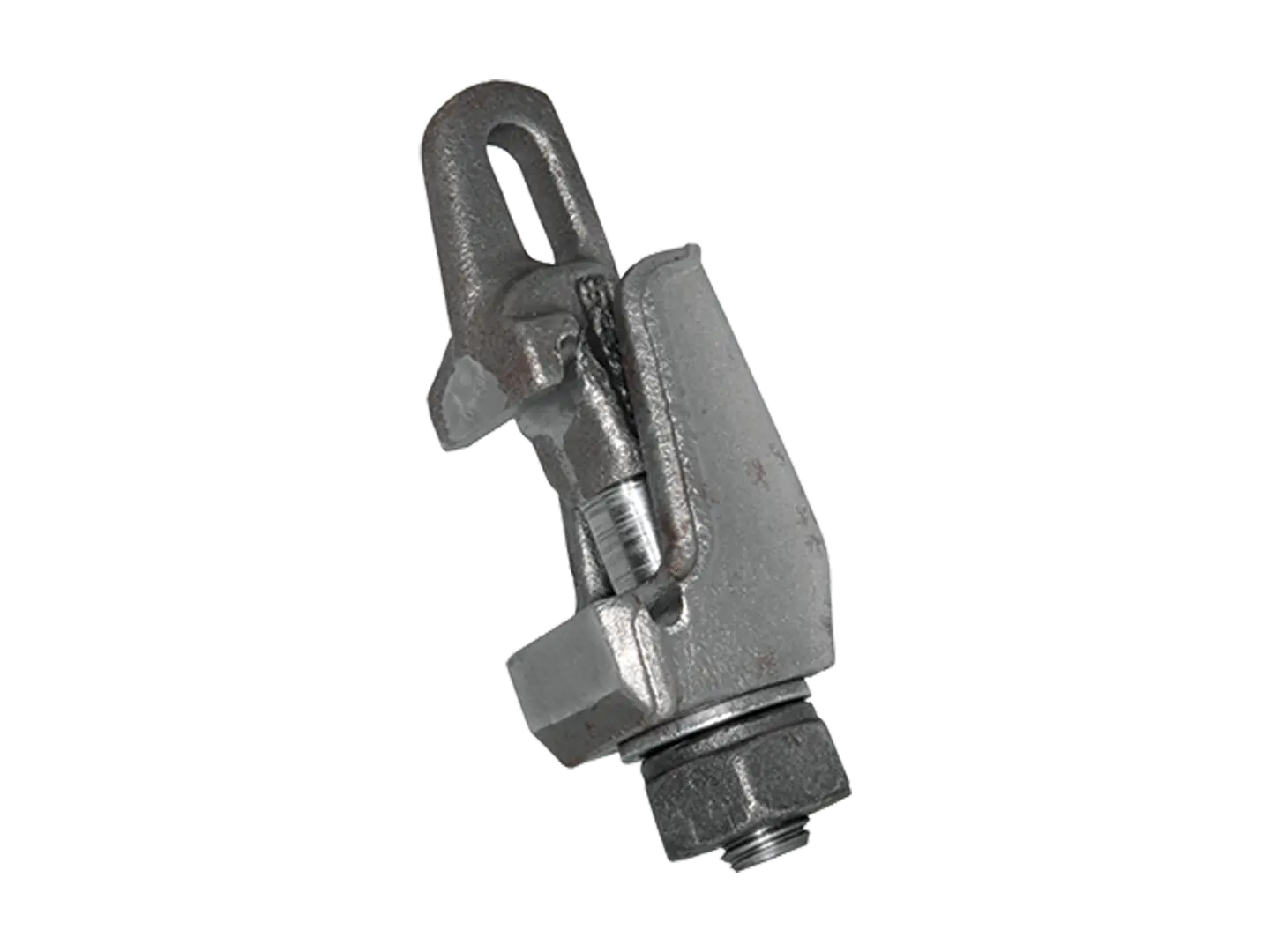

  1. Product image of WGR Rathmann - Segment clamping bolts
  2. Technical drawing with dimensions of WGR Rathmann - Segment clamping bolts
Overlay

1

/2
Product image of WGR Rathmann - Segment clamping bolts
  • Product image of WGR Rathmann - Segment clamping bolts
  • Technical drawing with dimensions of WGR Rathmann - Segment clamping bolts

WGR Rathmann - Segment clamping bolts

BN 261
Brand
WGR Rathmann
Material
Steel
Surface
plain
Material type
C35E
Material number
1.1181

Description

Product features

  • Material: C35E (1.1181)
  • Sandblasted/oiled
  • Staggered loadability up to 400 °C

Other documentation: www.wgr-rathmann.com

Additional information

With flat washers DIN 125 A and steel hexagon nuts. Inspection certificate available upon request: according to AD 2000 in accordance with DIN EN 10204-3.1 or 3.2.

Variants

CAD
