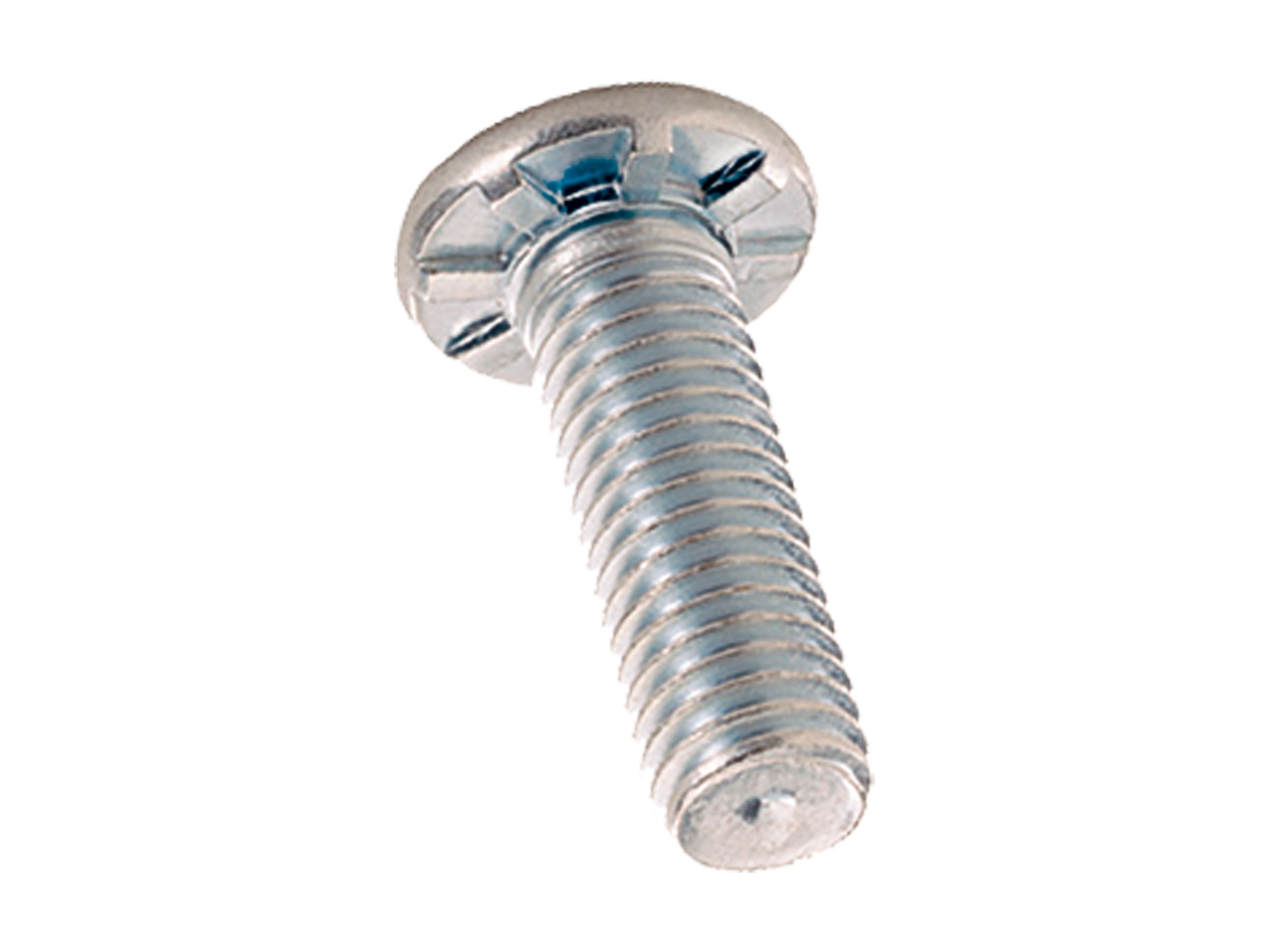

Product image of PEM® HF109 - Self-clinching threaded studs for metallic materials
  1. Product image of PEM® HF109 - Self-clinching threaded studs for metallic materials
  2. Technical drawing with dimensions of PEM® HF109 - Self-clinching threaded studs for metallic materials
  3. Assembly illustration for PEM® HF109 - Self-clinching threaded studs for metallic materials
Overlay

1

/3
Product image of PEM® HF109 - Self-clinching threaded studs for metallic materials
  • Product image of PEM® HF109 - Self-clinching threaded studs for metallic materials
  • Technical drawing with dimensions of PEM® HF109 - Self-clinching threaded studs for metallic materials
  • Assembly illustration for PEM® HF109 - Self-clinching threaded studs for metallic materials

PEM® HF109 - Self-clinching threaded studs for metallic materials

BN 28119
Brandtype
HF109
Brand
PEM®
Material
Steel
Material execution
hardened
Property class
10.9
Surface
zinc plated clear passivated

Description

Product features

  • For use in sheet hardness max. HRB 89

Additional information

For extremely high torque-out and pull-through resistance.

Assembly

Variants
