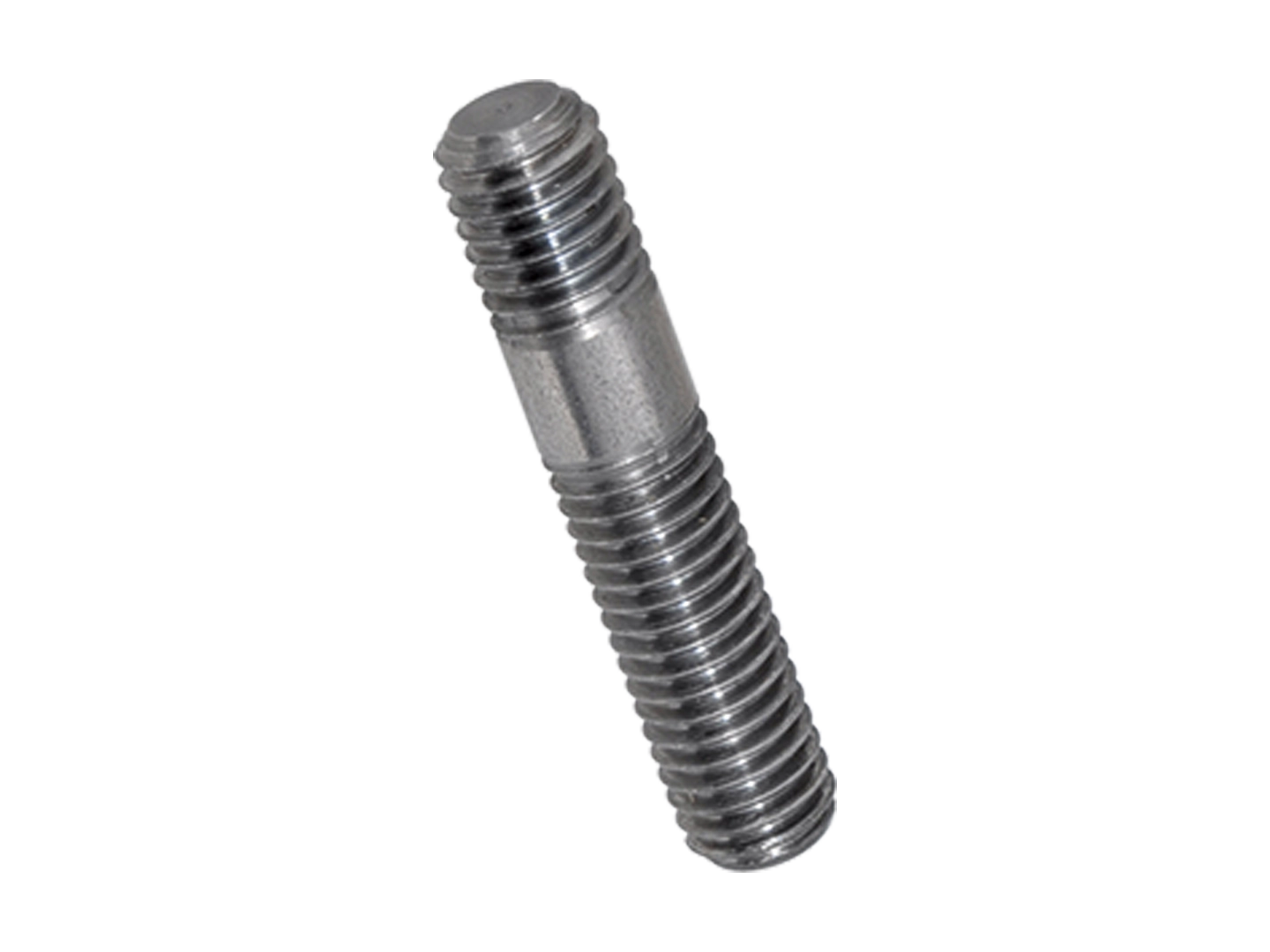

Stud bolts tap end with interference fit, length ~1,25 d

BN 436
Standard
DIN 939 ~SN 212202 ~UNI 5911 ~ČSN 021176
Material
Steel
Property class
8.8
Surface
black / plain

Description

Product features

  • Tolerance Sk6
  • Black / plain: at manufacturer's option

Additional information

Tap end b1 ~1,25d for assembly with interference fit 6H / Sk6

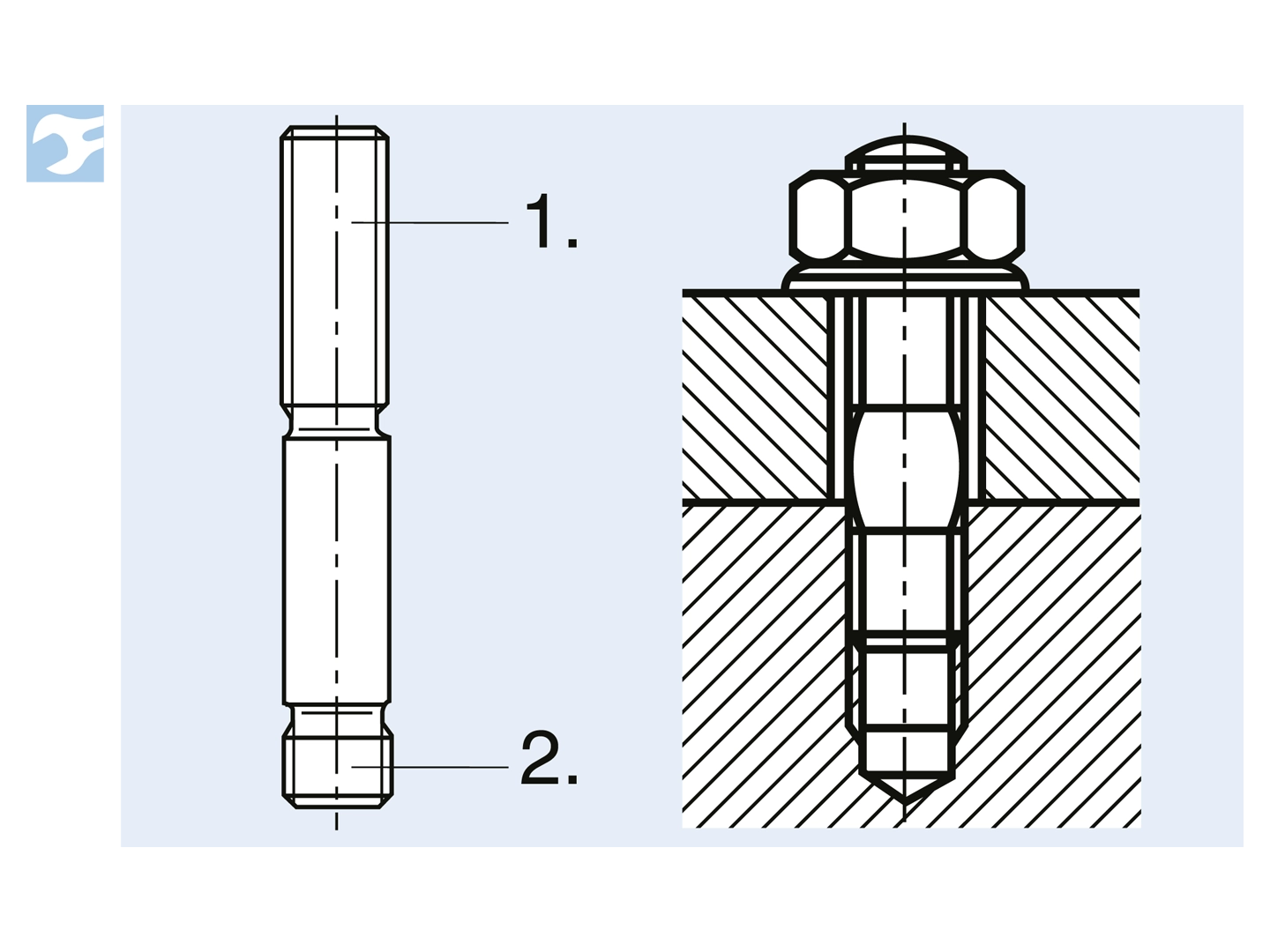

Assembly

1. Nut end 2. Tap end b1
