Taper pins with internal thread unhardened, ground

BN 865
Product image of Taper pins with internal thread unhardened, ground

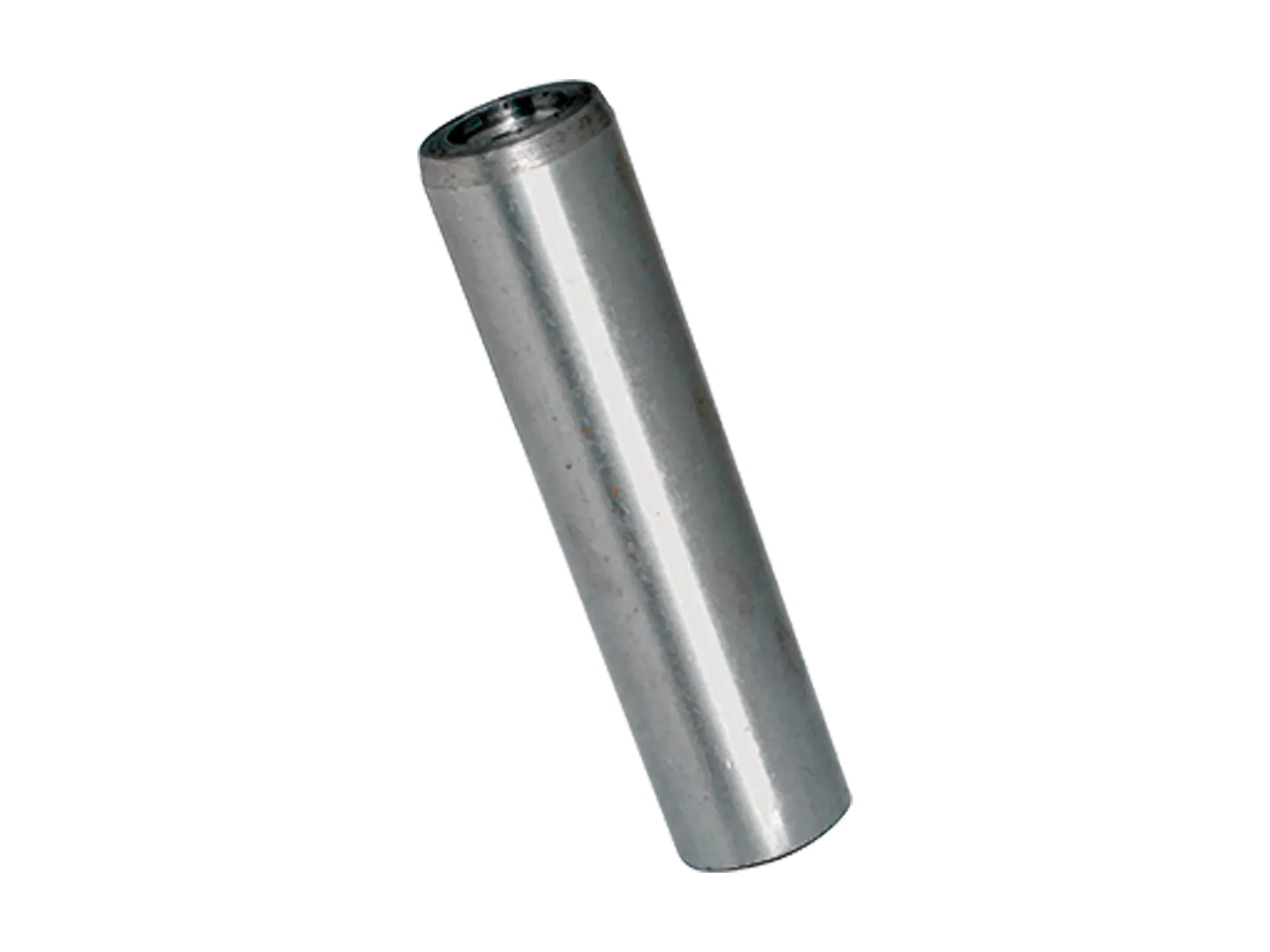

  1. Product image of Taper pins with internal thread unhardened, ground
  2. Technical drawing with dimensions of Taper pins with internal thread unhardened, ground

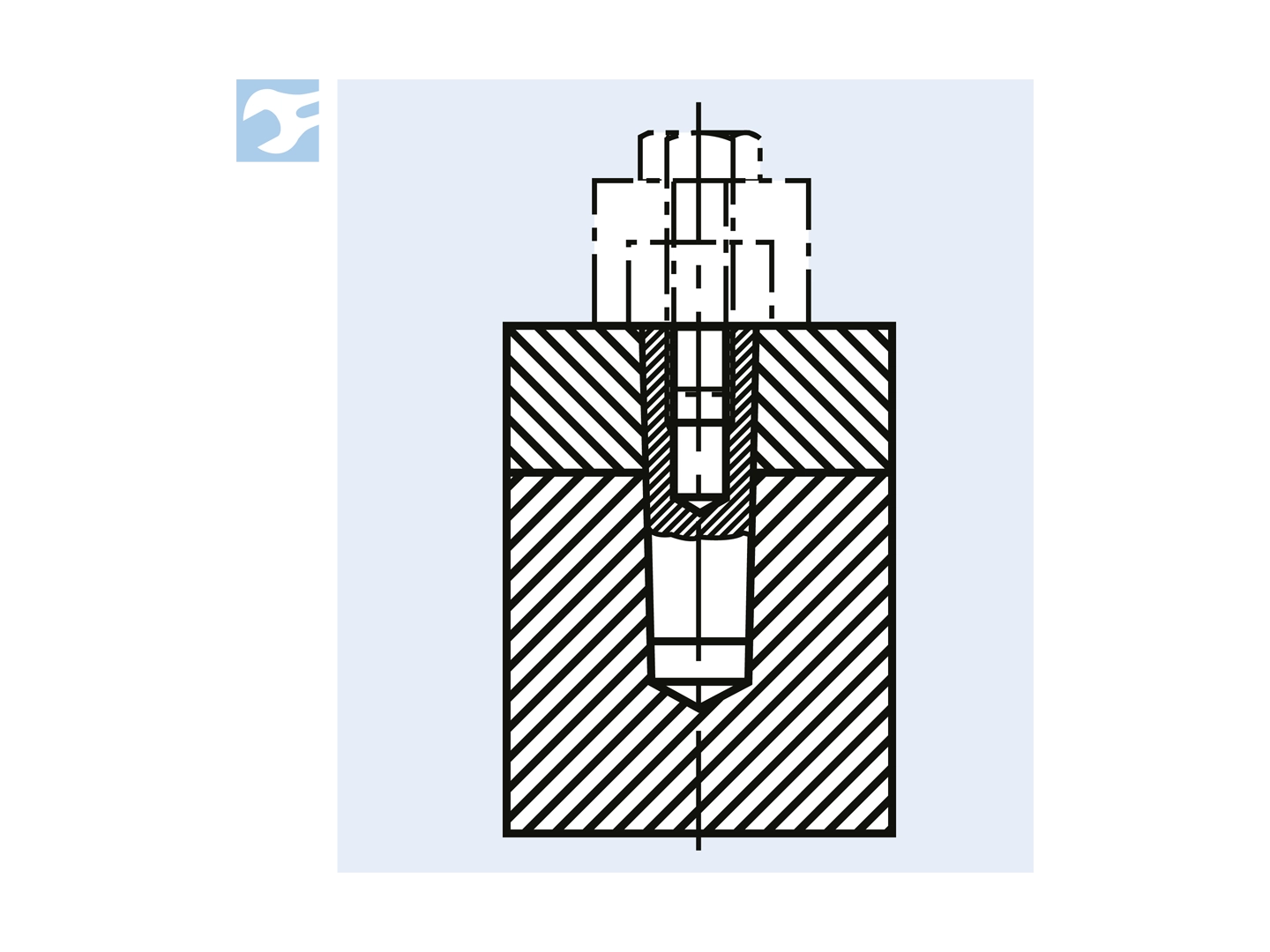

  3. Assembly illustration for Taper pins with internal thread unhardened, ground
Overlay

1

/3

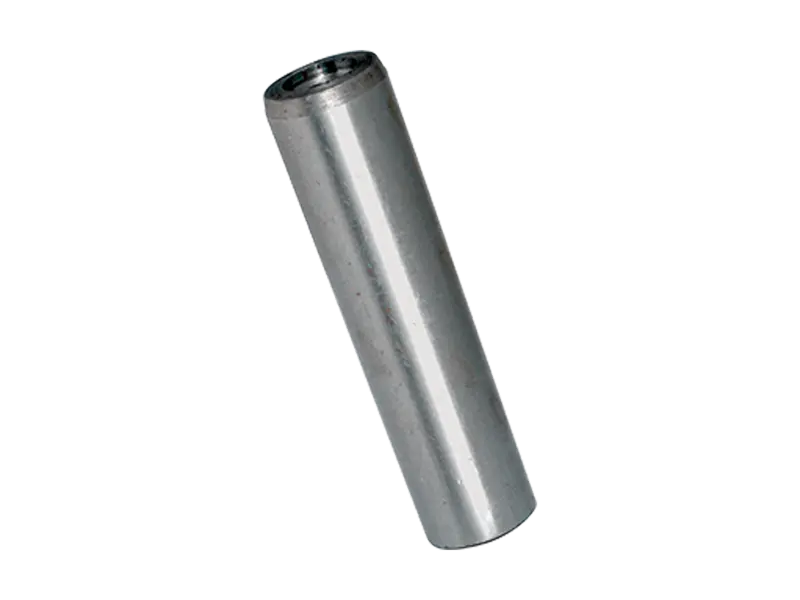

Product image of Taper pins with internal thread unhardened, ground
  • Product image of Taper pins with internal thread unhardened, ground
  • Technical drawing with dimensions of Taper pins with internal thread unhardened, ground
  • Assembly illustration for Taper pins with internal thread unhardened, ground

Taper pins with internal thread unhardened, ground

BN 865
Standard
DIN 7978 A (Standard withdrawn) ~ISO 8736 A ~VSM 12782 A ~UNI 7284 ~ČSN 022155
Material
Free-cutting steel
Surface
plain

Description

Product features

  • Tolerance: h10
  • type A

Assembly

Used for blind holes
