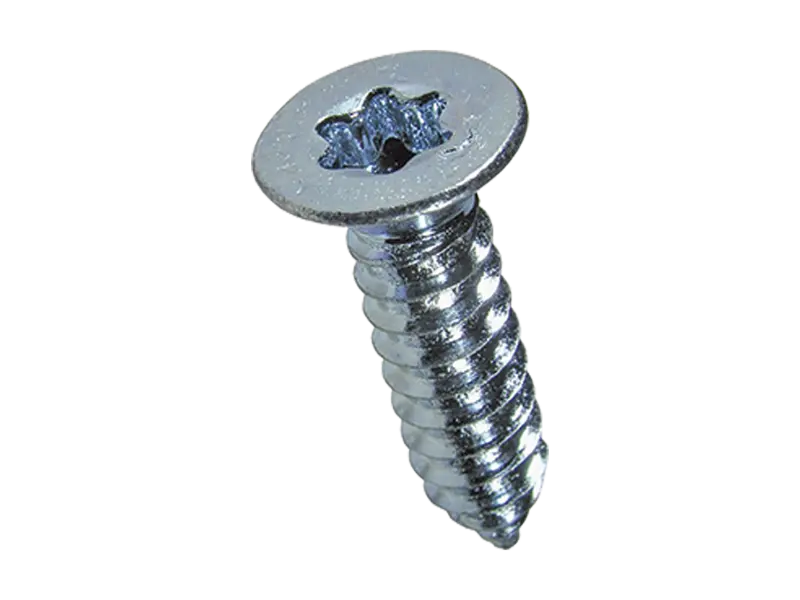

Product image of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C
  1. Product image of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C
  2. Technical drawing with dimensions of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C
Overlay

1

/2
Product image of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C
  • Product image of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C
  • Technical drawing with dimensions of Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C

Hexalobular (6 Lobe) socket flat head countersunk tapping screws with cone end type C

BN 11255
Standard
ISO 14586 C
Headform
Countersunk head 90°
Drive
Hexalobular socket
Thread
fully threaded
Material
Steel
Surface
zinc plated blue
Hardness
450 HV
Material execution
case-hardened

Description

Additional information

Countersunk must be designed according to the corresponding standard.

Safety Instructions

Transportation and storage

ISO 4042

Quenched and tempered fasteners ≥ 360 HV and tempered case-hardened fasteners with electroplated coatings: Susceptible to hydrogen embrittlement!

Further notice to residual risks can be found on our web page: Notes on use
