Threaded rod metric thread 1 meter

BN 30602

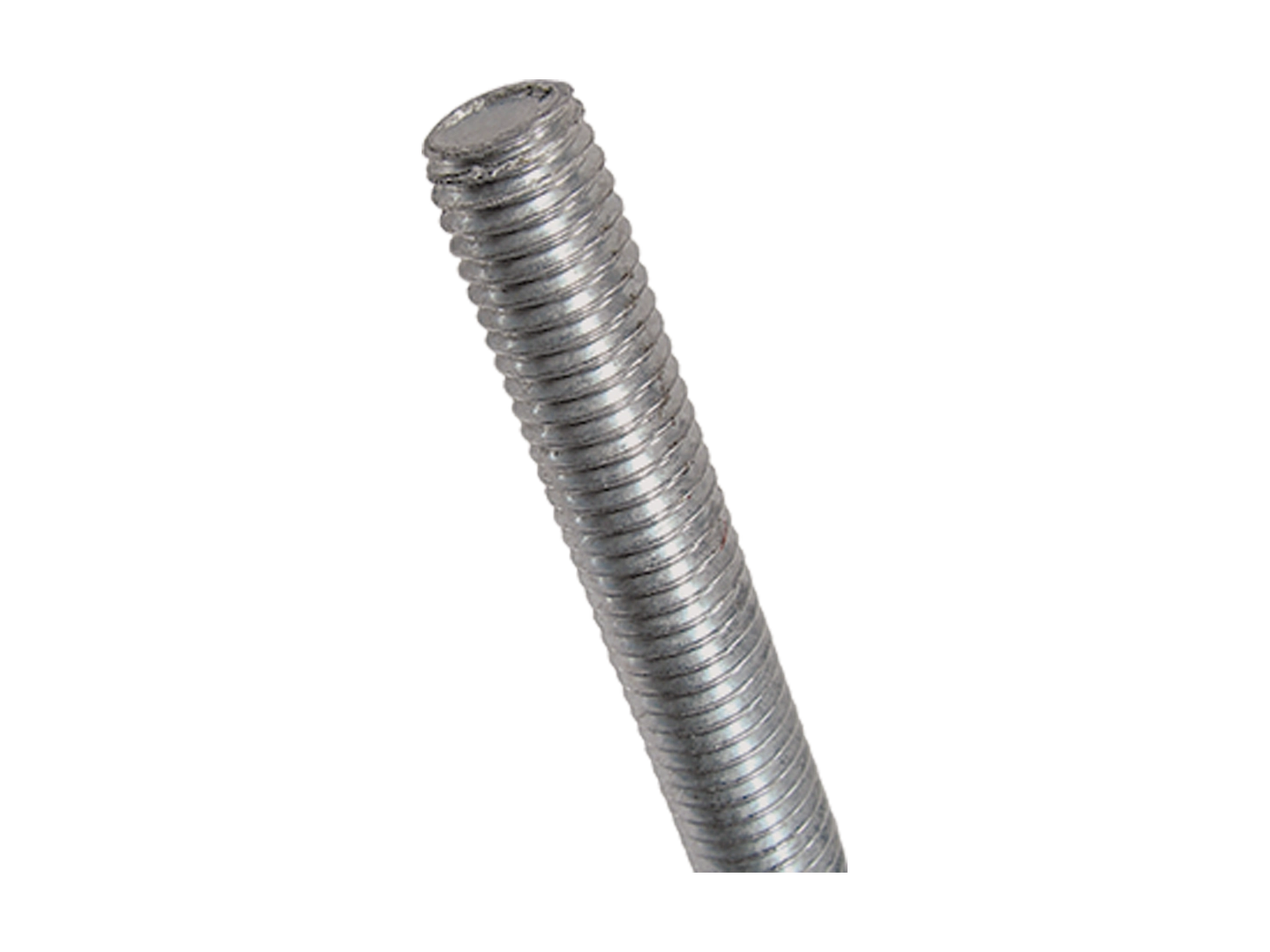

Product image of Threaded rod metric thread 1 meter
  1. Product image of Threaded rod metric thread 1 meter
  2. Technical drawing with dimensions of Threaded rod metric thread 1 meter
Overlay

1

/2
Product image of Threaded rod metric thread 1 meter
  • Product image of Threaded rod metric thread 1 meter
  • Technical drawing with dimensions of Threaded rod metric thread 1 meter

Threaded rod metric thread 1 meter

BN 30602
Standard
DIN 975 (Standard withdrawn)
Material
Steel
Surface
hot dip galvanized
Design
1 meter
Property class
8.8

Description

Product features

  • Thread before hot-dip galvanizing with tolerance class 6az, after hot-dip galvanizing with tolerance class 6h

Additional information

Corresponding to DIN 976-1, type A.

Assembly

Hot-dip galvanized external thread to mate with internal threads suitable for nuts of tolerance class 6H.

Variants

CAD
