Assembly
Depending on the material elasticity used on the elements to be assembled, deviations relating to the indicated assembly lenghts are possible.

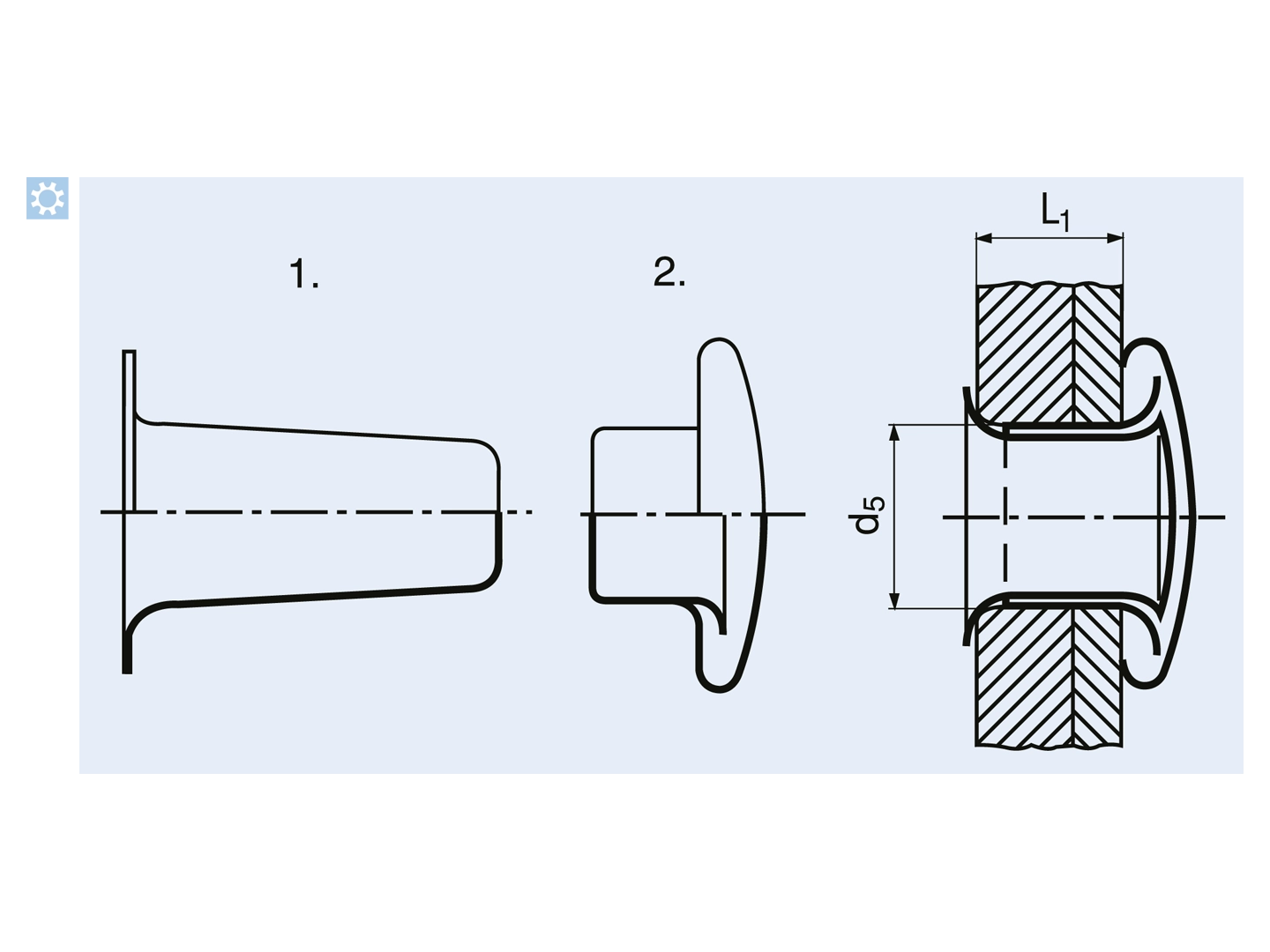

Functional Principle

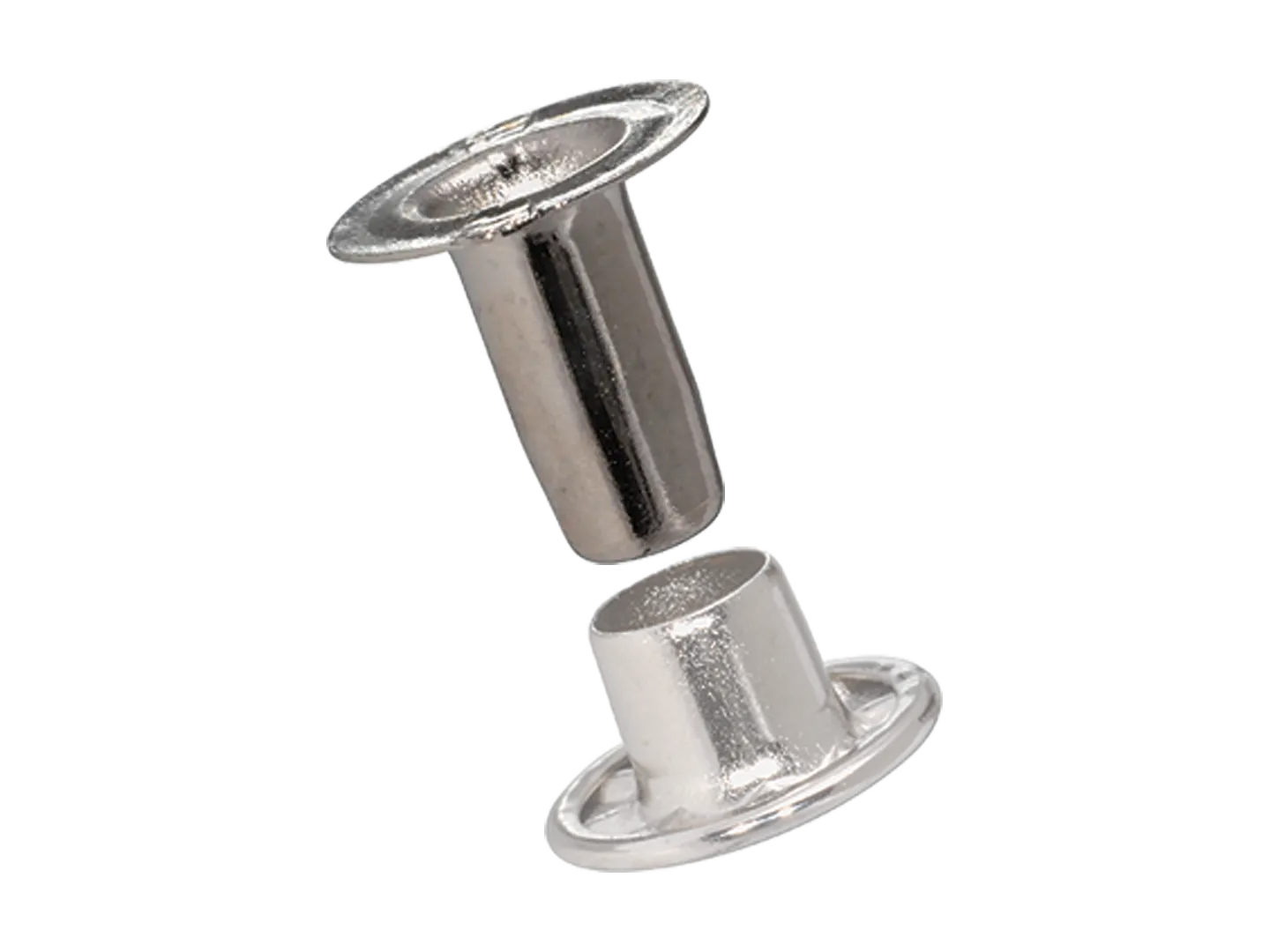

1. Riveting part (BN 945)
2. Head part (BN 946)
L3: clamping range
d5: hole diameter
