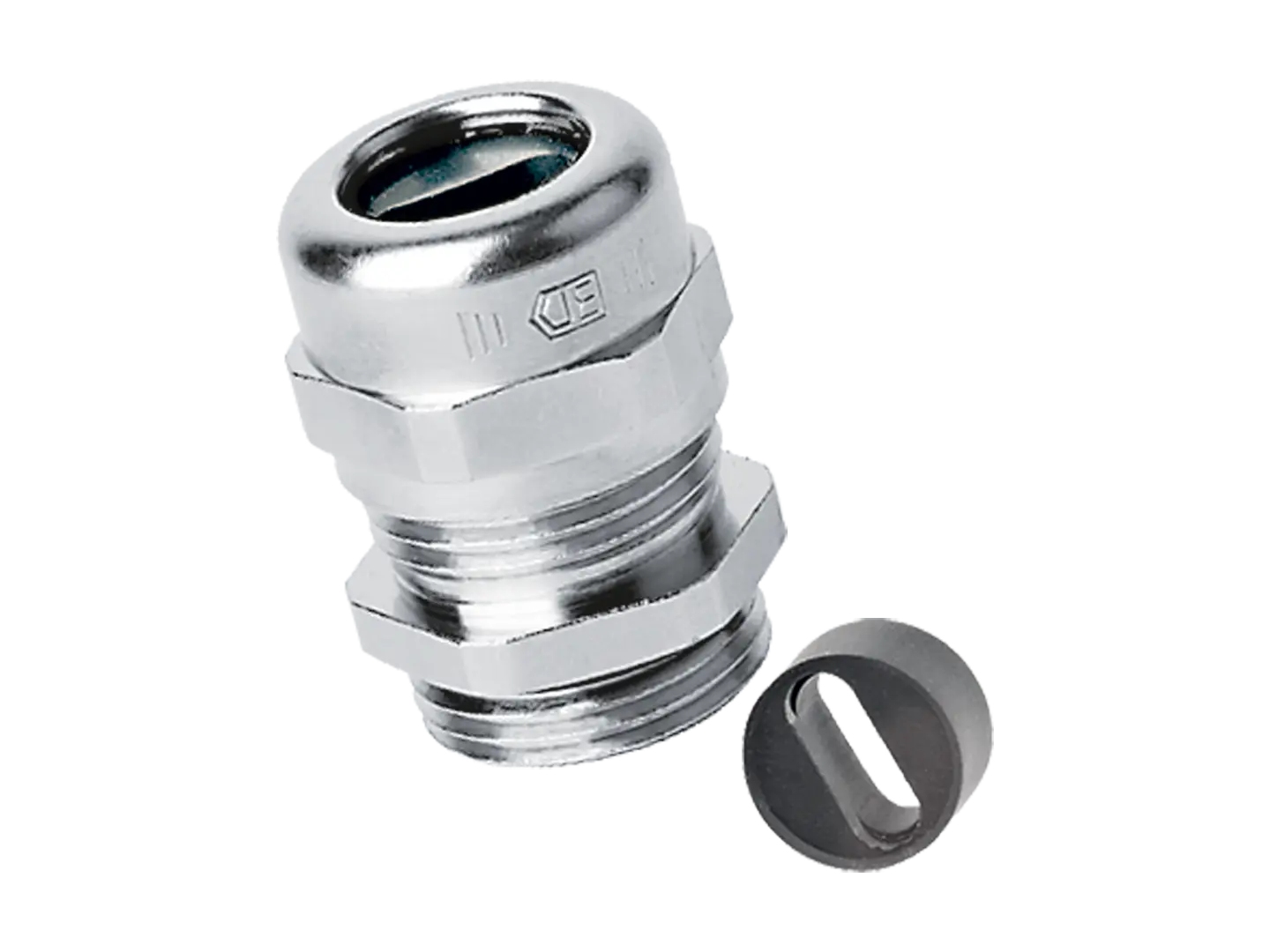

Product features

• Dome nut: brass CuZn39Pb3, nickel-plated
• Lamellar insert: polyamide PA 6 V-2
• Sealing insert: TPE/TPS
• Gland body: brass CuZn39Pb3, nickel-plated
• O-ring: Nitrile rubber NBR
• Connecting thread: metric, as per EN 60423
• For chamfered flat cables
• Temperature range: -20 °C ... +100 °C (dynamic)
• Temperature range: -40 °C ... +100 °C (static, short term)
• Protection grade: IP66, if the outer dimensions of the cable match the slot dimensions c max. exactly IP54, for cable dimensions between c max. and c min.
