Description
Product features

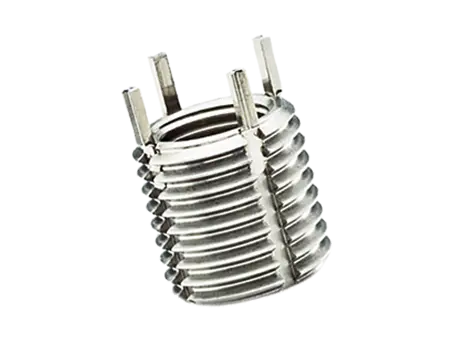

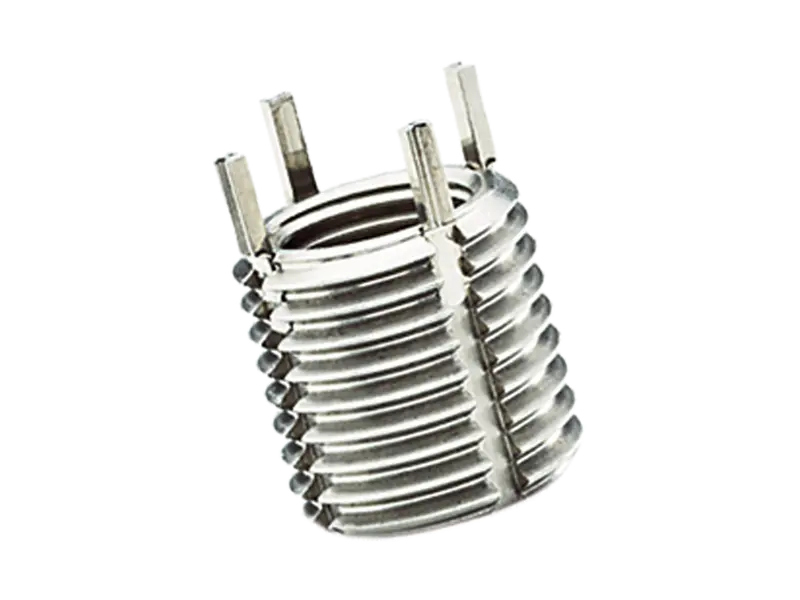

- Threaded inserts: INOX 1.4305 / locking keys: AISI 302
Additional information
Pull-out force [N]: shear engagement [mm²] x ultimate shear strength of parent material [N/mm²].
Assembly
1. Drilling with standard drill (modified core diameter according to Table d2")
2. Sink with Countersink (80°-100°, Table d4)
3. Thread cutting with Standard Tap (Table d3)
4. Screwing in/Locking: pneumatic or manually
